FluxPulse Beacon

## FluxPulse Beacon

FluxPulse Beacon applies a microstructure lens to every bar, combining directional thrust, realized volatility, and multi-timeframe liquidity checks to decide whether the tape is being pushed by real sponsorship or just noise. The oscillator's color-coded columns and adaptive burst thresholds transform complex flow dynamics into a single actionable flux score for futures and equities traders.

HOW IT WORKS

• Momentum Extraction – Price differentials over a configurable pulse distance are smoothed using exponential moving averages to isolate directional thrust without reacting to single prints.

• Volatility + Liquidity Normalization – The momentum stream is divided by realized volatility and multiplied by both local and higher-timeframe EMA volume ratios, ensuring pulses only appear when volatility and liquidity align.

• Adaptive Thresholding – A volatility-derived standard deviation of flux is blended with the base threshold so bursts scale automatically between low-volatility and high-volatility market conditions.

• Divergence Engine – Linear regression slopes compare price vs. flux to tag bullish/bearish divergences, highlighting stealth accumulation or distribution zones.


HOW TO USE IT

• Continuation Entries: Go with the trend when histogram bars stay above the adaptive threshold, the signal line confirms, and trend bias agrees—this is where liquidity-backed follow-through lives.

• Fade Plays: Watch for divergence alerts and shrinking compression values; when flux prints below zero yet price grinds higher, hidden selling pressure often precedes rollovers.

• Session Filter: Compression percentage in the diagnostics table instantly tells you whether to trade thin overnight sessions—low compression means stand down.


VISUAL FEATURES

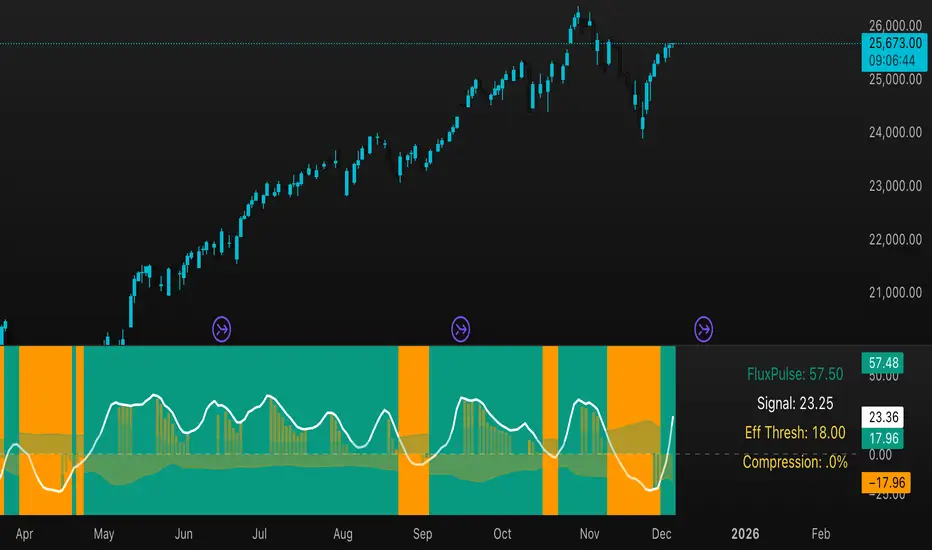

• Dynamic background heat maps flux magnitude, while threshold lines provide a quick read on whether a pulse is statistically significant.

• Diagnostics table displays live flux, signal, adaptive threshold, and compression for quick reference.

• Alert-first workflow: The surface is intentionally clean—bursts and divergences are delivered via alerts instead of on-chart clutter.


PARAMETERS

• Trend EMA Length (default: 34): Defines the macro bias anchor; increase for higher-timeframe confirmation.

• Pulse Distance (default: 8): Controls how sensitive momentum extraction becomes.

• Volatility Window (default: 21): Sample window for realized volatility normalization.

• Liquidity Window (default: 55): Volume smoothing window that proxies liquidity expansion.

• Liquidity Reference TF (default: 60): Select a higher timeframe to cross-check whether current volume matches institutional flows.

• Adaptive Threshold (default: enabled): Disable for fixed thresholds on slower markets; enable for high-volatility assets.

• Base Burst Threshold (default: 1.25): Minimum flux magnitude that qualifies as an actionable pulse.


ALERTS

The indicator includes four alert conditions:

• Bull Burst: Detects upside liquidity pulses

• Bear Burst: Detects downside liquidity pulses

• Bull Divergence: Flags bullish delta divergence

• Bear Divergence: Flags bearish delta divergence


LIMITATIONS

This indicator is designed for liquid futures and equity markets. Performance may degrade in low-volume or highly illiquid instruments. The adaptive threshold system works best on timeframes where sufficient volatility history exists (typically 15-minute charts and above). Divergence signals are probabilistic and should be confirmed with price action.

https://INSERT_CHART_SNAPSHOT_URL_HERE

---

## RangeLattice Mapper

RangeLattice Mapper constructs a higher-timeframe scaffolding on any intraday chart, locking in structural highs/lows, mid/quarter grids, VWAP confluence, and live acceptance/break analytics. It provides a non-repainting overlay that turns range management into a disciplined process.

HOW IT WORKS

• Structure Harvesting – Using

  request.security()

  , the script samples highs/lows from a user-selected timeframe (default 240 minutes) over a configurable lookback to establish the dominant range.

• Grid Construction – Midpoint and quarter levels are derived mathematically, mirroring how institutional traders map distribution/accumulation zones.

• Acceptance Detection – Consecutive closes inside the range flip an acceptance flag and darken the cloud, signaling balanced auction conditions.

• Break Confirmation – Multi-bar closes outside the structure raise break labels and alerts, filtering the countless fake-outs that plague breakout traders.

• VWAP Fan Overlay – Session VWAP plus ATR-based bands provide a live measure of flow centering relative to the lattice.


HOW TO USE IT

• Range Plays: Fade taps of the outer rails only when acceptance is active and VWAP sits inside the grid—this is where mean-reversion works best.

• Breakout Plays: Wait for confirmed break labels before entering expansion trades; the dashboard's Width/ATR metric tells you if the expansion has enough fuel.

• Market Prep: Carry the same lattice from pre-market into regular trading hours by keeping the structure timeframe fixed; alerts keep you notified even when managing multiple tickers.


VISUAL FEATURES

• Range Tap and Mid Pivot markers provide a tape-reading breadcrumb trail for journaling.

• Cloud fill opacity tightens when acceptance persists, visually signaling balance compressions ready to break.

• Dashboard displays absolute width, ATR-normalized width, and current state (Balanced vs Transitional) so you can glance across charts quickly.

• Acceptance Flag toggle: Keep the repeated acceptance squares hidden until you need to audit balance.


PARAMETERS

• Structure Timeframe (default: 240): Choose the timeframe whose ranges matter most (4H for indices, Daily for stocks).

• Structure Lookback (default: 60): Bars sampled on the structure timeframe.

• Acceptance Bars (default: 8): How many consecutive bars inside the range confirm balance.

• Break Confirmation Bars (default: 3): Bars required outside the range to validate a breakout.

• ATR Reference (default: 14): ATR period for width normalization.

• Show Midpoint Grid (default: enabled): Display the midpoint and quarter levels.

• Show Adaptive VWAP Fan (default: enabled): Toggle the VWAP channel for assets where volume distribution matters most.

• Show Acceptance Flags (default: disabled): Turn the acceptance markers on/off for maximum visual control.

• Show Range Dashboard (default: enabled): Disable if screen space is limited, re-enable during prep sessions.


ALERTS

The indicator includes five alert conditions:

• Range High Tap: Price interacted with the RangeLattice high

• Range Low Tap: Price interacted with the RangeLattice low

• Range Mid Tap: Price interacted with the RangeLattice mid

• Range Break Up: Confirmed upside breakout

• Range Break Down: Confirmed downside breakout


LIMITATIONS

This indicator works best on liquid instruments with clear structural levels. On very low timeframes (1-minute and below), the structure may update too frequently to be useful. The acceptance/break confirmation system requires patience—faster traders may find the multi-bar confirmation too slow for scalping. The VWAP fan is session-based and resets daily, which may not suit all trading styles.



---
