Parallel Channel

Application

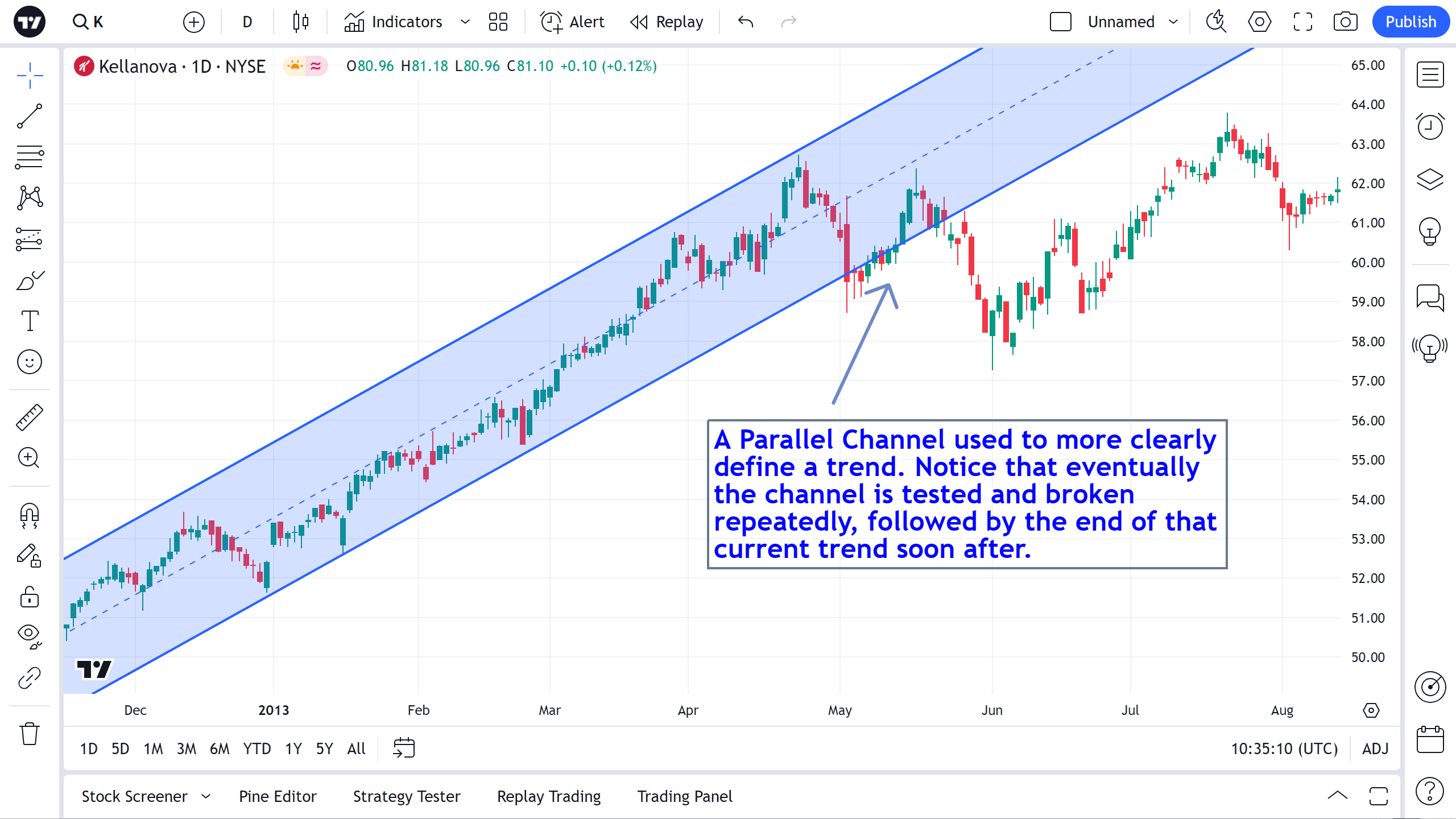

The Parallel Channel drawing tool is primarily used to distinguish trends of a price movement. The Parallel Channel tool has an option of being extended either to the right, left or both directions, if the user wants the channel to be continued indefinitely.

Style

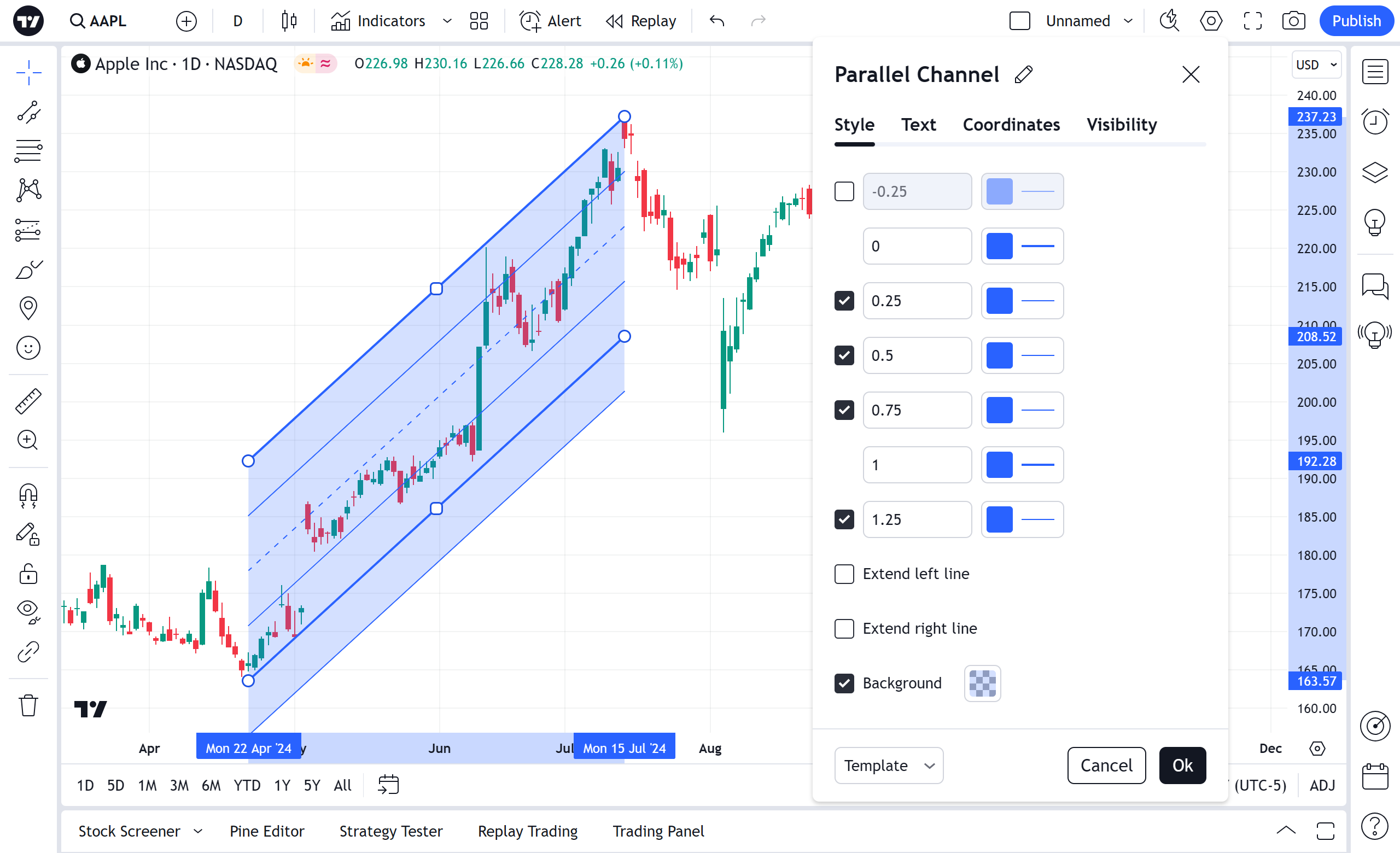

In Style property dialog it is possible to change the appearance of a Parallel Channel:

Channel

Sets the color, opacity, thickness and the style of the parallel channel's borders.

Middle

This checkbox enables visibility of the parallel channel's midline. The drop-down besides sets the style of the midline.

Extend Left

Check this box to extend the parallel channel's left end indefinitely.

Extend Right

Check this box to extend the parallel channel's right end indefinitely.

Background

This checkbox enables filling the parallel channel's background. Fill color and it's opacity can be selected in the drop-down beside.

Visibility

In visibility properties dialog you can switch the Parallel Channel's displaying on charts of different timeframes:

Alert

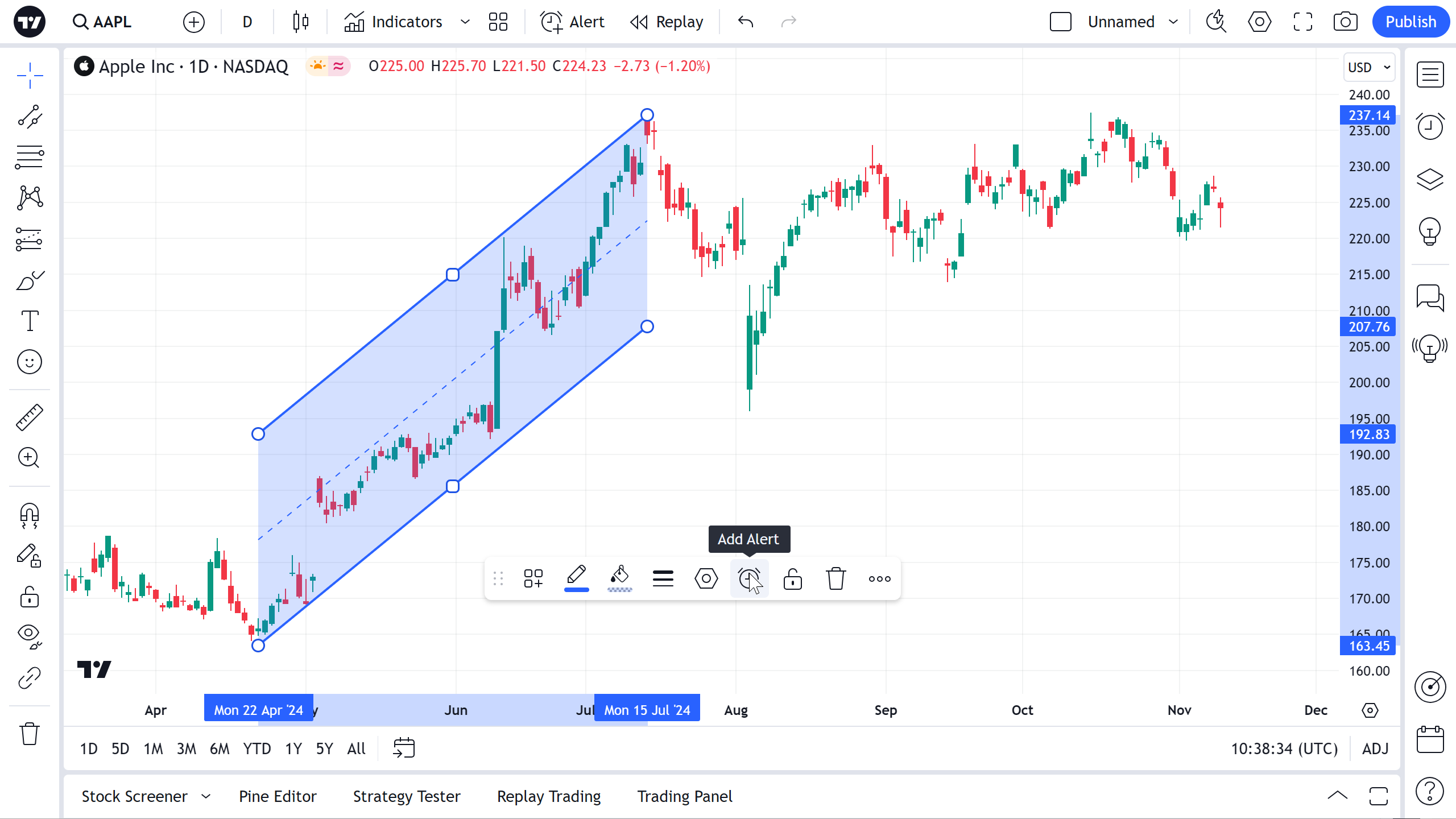

It is possible to set an alert to get notified about a series crossed the Parallel Channel on a chart. Use the clock icon in floating drawing toolbar or in right click menu on the Parallel Channel itself:

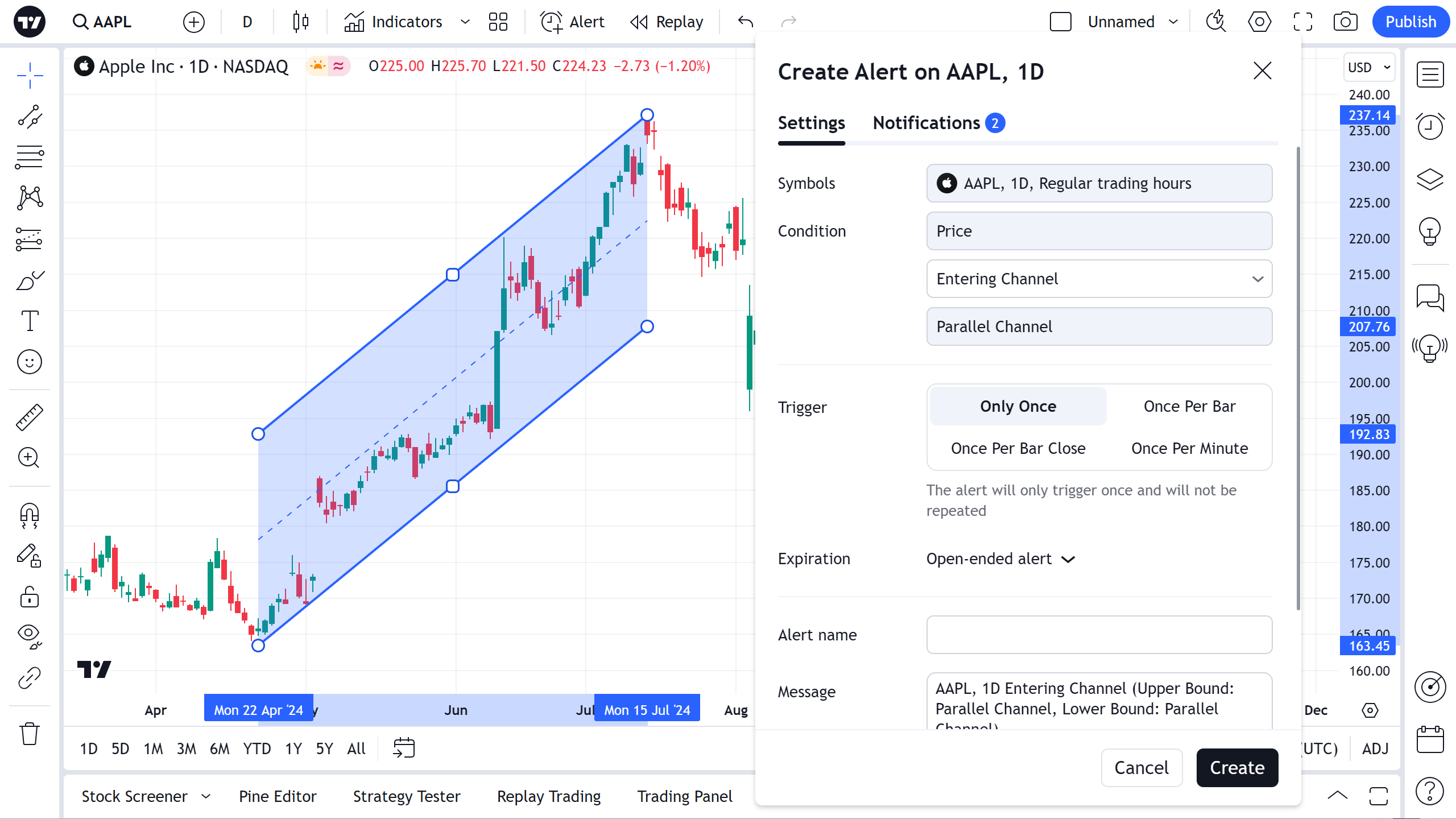

Then select a condition, periodicity and preferable method of notification, edit the notification massage if you wish, and press Create:
