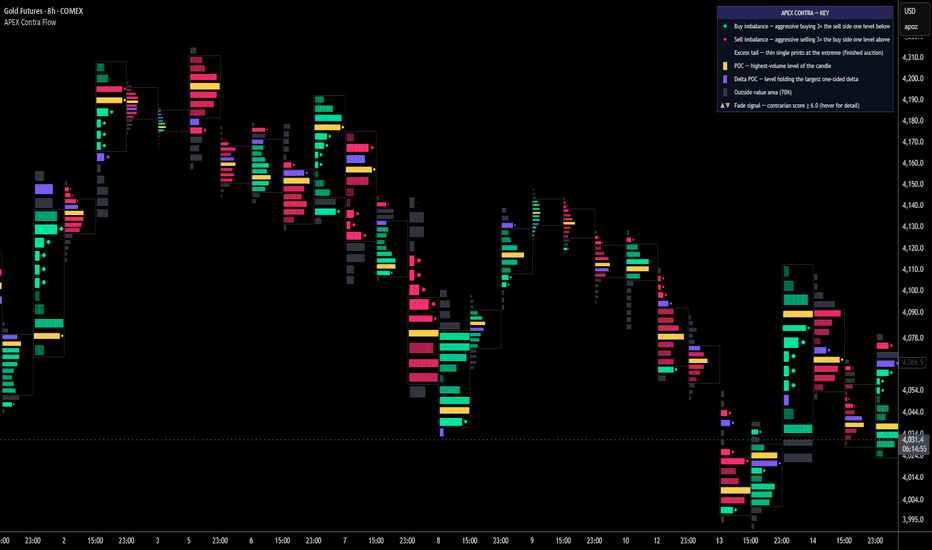

APEX Contra Flow | ProjectSyndicateAPEX Contra Flow rebuilds the order flow hidden inside every candle and reads it as an auction — then scores, bar by bar, whether that auction has finished and is ready to reverse. It drills into each bar with a lower-timeframe scan, distributes the intrabar volume across price by true overlap, splits it into graded buy/sell pressure, and renders it as a footprint anchored by POC, Delta POC, intrabar VWAP and the Value Area. On top of that it runs one idea from auction theory that conventional profile tools ignore: a market doesn't turn where volume is heavy — it turns where the auction runs out of business. The Contrarian Engine finds the bars where aggression achieved nothing, grades them 0–10, and fades them back toward value.
Most footprint tools describe. This one takes a side.
🌊 Intrabar Footprint Engine — the core. A lower-timeframe scan breaks each chart bar into its internal prints and rebuilds the auction that produced it. Granularity is adjustable (1 Tick / 1S / 5S / 15S / 1M / 5M) or Auto-scaled to your chart, with an automatic fallback resolution — if your plan or symbol won't serve the resolution you asked for, the engine silently drops to one that works instead of drawing a blank chart.
🧮 Overlap-Proportional Allocation — the accuracy differentiator. Conventional intrabar profiles smear each print's volume equally across every row it touches, which fattens the profile and drags the POC toward wide bars. APEX Contra Flow weights every row by the exact price overlap between the intrabar's range and that row. The shape you read is the shape that traded.
⚖️ Graded Buy/Sell Classification — not close >= open. On tick data the engine classifies against bid/ask (at-or-above ask = buy, at-or-below bid = sell, interpolated between). Off tick data it uses a tunable blend of close-location-in-range and body direction. Delta becomes a gradient, not a coin flip — so a bar that closed flat but was bought all the way up no longer reads as neutral.
🎯 POC · Delta POC · Intrabar VWAP — three separate reads on one candle. The Volume POC is where trade concentrated. The Delta POC is where the largest one-sided delta sits — the two diverging is a tell in itself. The intrabar VWAP marks the candle's true average traded price.
🧲 Value Area (VA) — computed by true value-area expansion outward from the POC at your chosen percentage, drawn as a clean outline with everything outside it dimmed back. Fair value framed; the rest fades.
🔺 Diagonal Imbalances & Stacked Runs — every row is tested diagonally: buy at a level against sell one level below, sell against buy one level above. Rows clearing your ratio are marked ◆ and coloured by side. Consecutive runs are counted — stacked imbalance sitting at the extreme is exhaustion evidence, not strength.
🕯️ Excess vs Unfinished Auction — the read almost nothing else surfaces. Thin single prints at a bar's extreme (·) are excess: the auction rejected that price and finished. Heavy volume parked at the extreme is unfinished business — an untested magnet price will likely come back for. One says reversal, the other says return.
🔠 Auction Shape Classification — P / b / D / B — real market-profile logic, applied per candle.
▪️ P — POC in the upper third, thin below: the rally was short covering, not fresh buying. Weak. Fade it.
▪️ b — POC in the lower third, thin above: long liquidation / capitulation. Fade it.
▪️ D — balanced auction, POC mid-range. Rotation back to the middle.
▪️ B — double distribution (two volume clusters split by a thin gap). This is a trending auction — and it vetoes the fade outright. The single most valuable filter in the tool is the one that tells you to stand down.
🏆 0–10 Contrarian Conviction Score — the power-ranking. Each fade candidate earns a live grade from seven weighted, principled factors, every one with a fixed directional sign:
▪️ Effort without result — heavy relative volume and delta that produced no body.
▪️ Trapped delta — delta pushing one way while the candle closes the other. Someone is offside.
▪️ Wick rejection — how violently the extreme was defended.
▪️ Excess — thin tail at the extreme being faded (finished auction).
▪️ Auction shape — P against a high, b against a low.
▪️ CVD divergence — a new price extreme that cumulative delta refused to confirm.
▪️ Stacked imbalance at the extreme — aggression stacking into a wall.
Resolved to a tier: WK → MOD → STRONG → V.STRONG → EXTREME.
🚪 Context Gates — why the signals stay rare. A score alone fires nothing. The bar must also print a new N-bar extreme, stretch a configurable ATR distance beyond its mean, clear a cooldown, and survive the B-shape veto. Fading strength in a trend is how contrarians die; these gates exist to stop it.
🎯 Fade Signals, Targets & Invalidation — one clean FADE ▲ / FADE ▼ label carrying the score. A dotted magnet line projects to the target: the nearest naked POC in the fade direction, or the candle's own POC if none is standing. A tick marks the invalidation extreme. Hover the label for the full read — score, tier, auction shape, value migration, delta, relative volume, POC, VWAP and the LTF actually used.
📍 Naked POC Magnets — high-conviction candles leave their POC extended to the right until price trades back through it, then it's removed. Untested POCs are unfinished business — and they double as the fade target.
📖 Legend Key — a static, self-adapting key (bottom-right by default). It lists only the glyphs you have switched on, and reads your live settings — your imbalance ratio, your VA %, your score threshold — so it can never drift out of sync with the chart.
🎨 Nine Dark-Native Themes — Obsidian (default), Institutional, Aurora, Neon, Phantom, Solar, Ice, Plasma and Mono — every one tuned to read on a black background, plus full custom buy/sell/POC overrides.
🧹 Clean-Chart Discipline — no dashboard, by design. No panel, no stat block, no clutter competing with price. The profile is the interface; the score lives inside the candle that earned it, the reasoning lives in the tooltip. Bar delta, CVD, contrarian score and bar volume stream to the Data Window for anyone who wants the raw series.
🔒 Honest & Non-Repainting Core — fade signals fire on confirmed bars only and never repaint away once printed. No signal is ever hidden, deleted or de-rated to flatter the chart. The footprint of the live, forming candle naturally refreshes as it builds — that is inherent to reconstructing order flow in real time, not a defect — and every closed bar is fixed. The 0–10 score is a descriptive auction framework for ranking attention, not a backtested edge.
🔔 Native Alerts — Fade Long, Fade Short, and Any Fade.
🔧 Fully Customizable — profile basis (Volume / Delta), granularity, rows, bar length, classification method and blend weight, VA %, POC / Delta-POC / VWAP / imbalance / excess toggles, imbalance ratio, min score, extreme lookback, mean length and ATR extension, CVD divergence lookback, cooldown, target length, naked-POC threshold and cap, theme, out-of-value transparency, legend position and size.
🎯 Why this is different — profile tools show you where volume is and leave the conclusion to you. Footprint tools show you delta and leave the conclusion to you. APEX Contra Flow classifies the auction, tells you whether it finished or is still trending, refuses to fade the ones that are trending, and puts a graded 0–10 case for the reversal inside the candle that made it. You read where the auction broke, why it's exhausted, and where it should rotate back to — at a glance.
🚀 Apply to Gold (XAUUSD), Silver, Forex, Crypto, Indices and Futures on any intraday timeframe (volume-bearing symbols).
💡 Cleanest setup: an indicator cannot hide the chart's own candles — right-click the chart → Settings → Symbol → uncheck Body / Borders / Wick to let the footprint stand alone.
🎯 How To Trade It — Two Approaches
Everything hinges on one question the tool answers: has this auction finished, or is it still trending? Finished auctions rotate. Trending auctions run you over.
◾ 1) Fade the finished auction → rotate to value (the core thesis)
Use on STRONG / V.STRONG / EXTREME scores (≥7) where the grade is built on excess, trapped delta and CVD divergence — and the shape is P at a high or b at a low.
▪️ Wait for the FADE ▼ / FADE ▲ to print on the confirmed bar — the gates have already checked the new extreme, the ATR extension and the shape veto.
▪️ Entry: on the signal close, or on a shallow re-test of the faded extreme that fails to make a new one.
▪️ Stop: beyond the invalidation tick at the wick extreme. If price closes decisively through and accepts there, the auction wasn't finished — stand aside or flip to Approach 2.
▪️ Targets: the dotted magnet line — the nearest naked POC, else the candle's POC. The opposite Value-Area edge if rotation extends.
⚖️ The cleanest version: price spikes to a new 10-bar high, stretches beyond its mean, prints a long upper wick on heavy volume with positive delta but closes in the lower half (trapped buyers), the top rows are thin (excess), the POC sits high (P — short covering), and CVD refuses to confirm the new high. Score prints 8.4 EXT. That confluence is the exact move this tool was built to frame.
◾ 2) Stand down — and trade the other side
The tool tells you when not to fade, which is worth as much as the signal.
▪️ Shape = B (double distribution) — the auction is trending and building a second distribution. The veto fires. Do not fade; look for continuation on the pullback into the lower distribution instead.
▪️ No excess, heavy volume at the extreme — unfinished business. Price is likely to return to that price rather than reverse from it.
▪️ Signals fire and immediately fail, repeatedly — one-sided flow is expanding. Trade with it into the next naked POC.
Rule of thumb: ⭐ High score + excess + P/b shape + CVD divergence → expect rotation, fade toward the POC. ⭐ B shape, no excess, or price accepting beyond the level → expect follow-through, trade the break toward the next naked POC.
⚠️ IMPORTANT NOTICE: APEX Contra Flow reconstructs estimated order flow from lower-timeframe data. Intrabar delta, absorption and buy/sell classification are an approximation of true tape, not exchange order-book data — off tick resolution the buy/sell split is inferred from price behaviour, not observed aggression. The 0–10 contrarian score is a descriptive auction framework — NOT a backtested signal and NOT a standalone trade trigger. Fading extremes is inherently a counter-trend activity and carries real risk of repeated stop-outs in a trending market; the shape veto reduces this but cannot eliminate it. The indicator requires a volume-bearing symbol. Always combine it with your own strategy, price-action analysis and risk management. Past behaviour does not guarantee future results. Indikator
Order Flow Volume Delta, CVD, Absorption & Divergence [LunqFX]Price shows you WHERE the market went. Order flow shows you WHO pushed it there — buyers or sellers — and whether they had real volume behind the move. This Order Flow indicator reads the volume delta on every candle (the balance of buying volume vs selling volume), builds it into a cumulative volume delta (CVD) trend, and automatically marks the two order-flow events that lead price: absorption and delta divergence. Everything is drawn on your chart as clean delta candles, order-flow support/resistance levels and a live buying-pressure dashboard.
❶ THE CONCEPTS (so it's clear)
▸ VOLUME DELTA — the difference between buying volume and selling volume inside a bar. Positive delta = buyers were more aggressive, negative = sellers. It is the core of all order-flow analysis.
▸ CVD (CUMULATIVE VOLUME DELTA) — delta added up over time. A rising CVD means buyers are steadily accumulating; a falling CVD means distribution by sellers. CVD is how you see the real trend of order flow, not just price.
▸ ABSORPTION — a bar with heavy volume but almost no price movement. It means a large player (smart money / institutional) is absorbing every market order at that level. Absorption very often appears right before a reversal.
▸ DELTA DIVERGENCE — price makes a new high but CVD does not (or a new low but CVD does not). The move has no real volume behind it — a trap / exhaustion signal that warns a reversal is likely.
❷ WHAT YOU SEE ON THE CHART
▸ Delta candles — sky-blue when buyers won the bar, coral when sellers won; the brighter the candle, the more one-sided the flow. You read buying and selling pressure at a glance.
▸ Order-flow levels — every absorption (gold) and divergence (blue / coral) is projected to the right as a support/resistance level with its exact price. These are the levels where big volume actually traded, so price reacts to them again.
▸ Live dashboard — who is in control (buyers vs sellers) from the CVD, the CVD value, the current bar's buy/sell pressure split, and the latest signal.
❸ HOW TO TRADE IT — STEP BY STEP
1 — Read the BIAS. The panel shows ▲ BUYERS or ▼ SELLERS IN CONTROL from the CVD. Trade with the side that controls order flow, not against it.
2 — Watch for DELTA DIVERGENCE against the move. Price higher high while CVD makes a lower high = buyers are exhausted → look for shorts. Price lower low while CVD makes a higher low = sellers are exhausted → look for longs. This is the highest-value order-flow reversal signal.
3 — Use ABSORPTION as a reversal cue. When heavy volume fails to move price, the move is being absorbed; watch for the turn and use that gold level as your invalidation line.
4 — Trade the reaction at order-flow levels. Old absorption and divergence levels act as support and resistance — enter when the delta flips back in your favour as price returns to a level.
5 — Confirm with Bar pressure. The panel's ▲/▼ % buy shows the live buy/sell split — take the trade when it agrees with your setup and the bias.
❹ HOW IT WORKS (fully transparent)
Each bar's volume is split by where price closed in its range: buy-volume = volume × (close − low) ÷ range, sell-volume = volume × (high − close) ÷ range, and delta = buy − sell. This is a transparent, range-based volume-delta estimate — it needs no tick or bid/ask feed, so it runs on any symbol. CVD is the running sum of that delta (session-anchored on intraday charts, fully cumulative on daily and higher, handled automatically). Absorption is flagged when volume rises above its average by your chosen multiple while the candle body stays smaller than a fraction of ATR. Divergence compares each confirmed swing pivot in price with the CVD value at that pivot. Every reading comes from closed bars and confirmed pivots — no repainting, no lookahead.
Order flow is strongest on markets with true exchange volume — crypto, stocks, futures and indices — and on intraday timeframes (1m–4h), where buying and selling pressure is most meaningful. On forex, volume is broker tick-volume, so treat the delta as an approximation of order flow rather than exact.
SETTINGS — CVD reset (Session / Week / None), absorption sensitivity, divergence swing length, number of order-flow levels + glow, delta candles on/off, dashboard position.
ALERTS — bullish delta divergence, bearish delta divergence, absorption, and CVD crossing zero (buyers / sellers taking control).
This indicator is an educational market-analysis tool, not financial advice. The volume delta shown here is a transparent estimate from price and volume, not exchange-audited bid/ask order flow, and past behaviour does not guarantee future results. Always confirm with your own analysis and manage your risk.
Indikator
Futures Volume Profile - CFD ChartsCFD charts only show broker tick volume, which does not represent real market
participation. This indicator pulls REAL exchange volume from the matching
futures contract and builds a volume profile directly on your CFD chart.
What makes it original: standard volume-profile tools weight by the chart's
own (tick) volume. This one maps futures contract volume into CFD price
coordinates (price = CFD, weight = futures), accumulates the profile
incrementally so month anchors work without lookback limits, and can anchor
the session to the futures trading day instead of CFD broker midnight.
How it works:
- The futures contract is auto-detected from the chart symbol (DAX/GER40 ->
FDAX, NAS100 -> NQ, US30 -> YM, UK100 -> Z, US500 -> ES), or set manually.
- Each chart bar's price range is split into zones; the futures volume of that
bar is distributed across the zones it covers (price = CFD coordinates,
weight = futures volume — so the basis offset between CFD and futures is
handled naturally).
- The profile accumulates incrementally per anchor period (session/week/month)
and resets at the period change. POC (red), VAH/VAL (blue, dashed) and the
histogram update live.
- Optional "Daily anchor = futures trading day": the session reset fires at
the futures day change instead of the CFD broker midnight, so the profile is
anchored identically whether you chart the CFD or the future itself.
- Bars without futures data (e.g. overnight hours of a 24h CFD) contribute
nothing — mixing tick volume with contract volume would distort the profile.
The source label warns you when no futures data is available.
How to use it: treat POC/VAH/VAL as the real participation levels behind your
CFD chart — acceptance above the value area supports continuation, a rejection
back inside favors rotation toward the POC. Thick zones (HVN) act as magnets
and consolidation areas, thin zones (LVN) tend to be traversed quickly, which
makes them useful stop and target references. Zone width is ATR-derived by
default or fixed in points.
Indikator
Order Flow 3D Delta Profile [LuxAlgo]The Order Flow 3D Delta Profile indicator provides a spatial visualization of volume delta distribution across a specified lookback period, using 3D extrusion to represent market depth and intensity.
🔶 USAGE
The indicator projects a 3D volume profile onto the chart, allowing traders to identify price levels with significant buying or selling pressure. Unlike traditional 2D profiles, this tool uses depth and perspective to highlight the relationship between price, volume, and time.
🔹 Value Area and POC
The script identifies the Point of Control (POC) as the price level with the highest total volume, rendered in a distinct color. The Value Area (VA) highlights the price range where a user-defined percentage of total volume (default 70%) occurred. Bins outside the Value Area are darkened to emphasize the core trading zone.
🔹 Profile Alignment and Placement
Users can customize the spatial arrangement of the profile:
Placement: Choose to overlay the profile directly "On Candles" or position it to the "Right of Price" for a clearer view of current price action.
Alignment: Set the profile to "Center" to see delta split (bullish volume to the right, bearish to the left), or "Left/Right" to see unified volume bars.
🔹 3D Perspective
The "3D Options" allow for full control over the visual tilt. Adjusting the X and Y Extrusion Depths changes the angle of the "blocks," providing a pseudo-3D effect that can help distinguish overlapping price levels.
🔹 Volume Anomaly Highlights
When enabled, the indicator identifies individual candles with abnormally high volume (based on a multiplier of the average). These candles are highlighted with a glowing effect and a "3D Laser Beam" that connects the candle directly to its corresponding price level in the profile.
🔶 DETAILS
The script calculates volume distribution by dividing the high-low range of the lookback period into "Buckets." Each candle's volume within the period is assigned to a bucket based on its median price.
The 3D effect is constructed using polylines to create front, side, and top faces for every volume bin. The drawing order is dynamically managed based on the Y-tilt (drawing bottom-to-top or top-to-bottom) to ensure correct visual layering and occlusion.
🔶 SETTINGS
🔹 General
Length: The number of historical bars included in the profile calculation.
Buckets: The number of price rows (bins) used to divide the vertical range.
Value Area %: The percentage of total volume used to calculate the Value Area.
🔹 Profile Setup
Profile Alignment: Determines if volume is centered or pinned to a side.
Profile Placement: Determines the horizontal location of the profile.
Profile Width Scale: Controls the maximum horizontal width of the volume bins.
🔹 3D Options
Extrusion Depth X/Y: Controls the horizontal and vertical tilt of the 3D perspective.
Show Bounding Box: Draws a 3D wireframe around the range of the profile.
🔹 Visuals
Highlight High Vol Candles: Enables the glow and connection beams for volume anomalies.
Anomaly Threshold: The multiplier applied to average volume to identify an anomaly.
🔹 Style
POC Color: Color used for the Point of Control.
Bull/Bear Colors: Colors representing positive and negative volume delta.
Border Color: The color of the 3D block edges and bounding box.
Indikator
Strong Volumetric Zones | ProjectSyndicateStrong Volumetric Zones carves the chart's true supply and demand from actual transacted volume — not from pivots, not from moving averages, not from projected lines — then power-ranks every zone so you know which ones are institutional footprint and which ones are noise. It pulls lower-timeframe order-flow data for every candle in the lookback window, builds a full volume-at-price histogram with buy/sell decomposition, isolates the high-volume nodes that dominate their neighborhood, extends each one into a bounded zone using a fractional-volume cutoff, and grades all of them 0–10. The whole tool runs on one idea: price alone is a story half-told — a level where the auction deposited enormous volume, where delta confirms one side was defending, where every test has been rejected, and that stands fresh and unchallenged is a different animal from a thin blot of retail churn, and it should not look the same on your chart.
BTCUSD
This is an order-flow reaction matrix, not a signal generator. It tells you where the auction has parked real liquidity, whether that liquidity is supply-side or demand-side, how many times price has tested it and held, how hard price was rejected on each hold, and which zone is the strongest one on the chart right now. The read is directional in the sense that you can see, at a glance, whether the session's volume structure is stacked with supply above or demand below — and whether the current candle is absorbing, exhausting, or stacking imbalance in real time.
🟢🔴 Summary how to trade this — more details below, read entire guide. Two clean approaches: react at the zone, or trade the break of it. Prefer STRONG / EXTREME grades and zones with high hold rates — the shallow low-graded zones tag constantly and mean little. The dashboard's Nearest ▲ / Nearest ▼ and Zone Status tell you instantly whether price is inside a volumetric wall or in open air. Runs on any timeframe with intrabar data available.
🧱 The Volume Core — the only source of truth. Every zone in this tool descends from a confirmed high-volume node in the actual volume-at-price histogram, never from a price-only pivot, never from an indicator line, never from a projected level. The engine requests lower-timeframe bars — auto-scaled from 1-second up to 5-minute depending on your chart — and decomposes each candle's range into volume-by-price bins. Buy volume and sell volume are tracked independently from the close-vs-open direction of every intrabar tick. The profile lookback is 300 bars by default and the bin resolution scales dynamically with ATR200, so the histogram adapts to the instrument's volatility without manual tuning. Nothing is drawn from a guess.
🔭 Lower-Timeframe Decomposition — Six granularity slots, auto-selected by default, running from 1-tick to 5-minute. Each confirmed chart candle is exploded into its internal sub-bars; volume is assigned to price bins based on the actual range covered by each sub-bar, not from a proportional tick-close estimate. Buy/sell classification follows the candle direction of the sub-bar itself. This is the reconstruction layer that separates a volume profile built from order flow from one built from assumptions. When the chart is on H4, the engine still reads M1 structure inside every bar.
◆ High-Volume Node Isolation — the signature carve. Within the global histogram, a bin must dominatepeakRadius neighbours on both sides (default 2) to qualify as a high-volume node — it is the local maximum of its neighborhood. A floor filter (minPeakPct of the POC volume, default 18%) eliminates statistical noise. All qualifying peaks are then sorted by absolute volume, strongest first, and the engine attempts to carve up tomaxZones zones (default 8), skipping any whose range overlaps an already-accepted zone. This is where the tool separates from a blob of undifferentiated volume bars: instead of forty equal-weighted histogram rows, you get a handful of bounded zones ranked by the actual liquidity parked inside them.
📐 Zone Edge Extension — Each confirmed node becomes a seed, and the zone expands outward bin-by-bin while neighbouring bins retain at leastnodeCut (default 40%) of the node's volume. Expansion halts atmaxSpan bins (default 2) to prevent overgrowth. The result is a bounded rectangular zone with a defined top, bottom, and mid-line — not a single price point, not an infinite band. The zone's width reflects the actual spread of significant volume around the node, not an arbitrary ATR multiple. Overlapping zones are rejected outright; only the strongest node survives at any price level.
🏷️ The 0–10 Strength Engine — Every zone carries a live grade with stars and a tier word WEAK → MODERATE → STRONG → VERY STRONG → EXTREME. The score is a weighted blend of five independently measurable properties, all derived from real volume and real price action:
▪️ Volume Share 3.5 — how much of the profile's total volume sits inside this zone, normalized against the strongest zone. The dominant term. A zone that holds 30% of the auction is not the same as one holding 3%.
▪️ Touch Count 2.5 — how many times price has entered and exited the zone across the full lookback. Normalized against 6 touches. A zone tested repeatedly has been confirmed by the market.
▪️ Hold Win Rate 2.0 — of all completed tests, what percentage resulted in a hold (rejection) rather than a break. A zone that defends itself 80% of the time is structurally different from one that folds on the first touch.
▪️ Freshness 1.0 — how recently the zone was last tested, normalized against the profile lookback. A zone untouched for 200 bars is fresher than one poked five bars ago.
▪️ Delta Skew 1.0 — the absolute buy-vs-sell imbalance inside the zone, normalized against a 35% threshold. A demand zone with 70% buy volume has institutional sponsorship; a 51/49 split does not.
Read the grade as a descriptive conviction ranking for which zone deserves your attention — it is not a backtested win-rate. A score filter hides everything below a level you choose, and a minimum-touch filter strips zones that have never been tested, so you can strip the chart down to STRONG and EXTREME only.
USDJPY
🔬 Per-Candle Strength Score — Independently, every confirmed candle receives its own 0–10 order-flow strength score, built from five micro-structural inputs: relative volume vs the 20-bar average, delta dominance (absolute delta / total volume), POC concentration (how much volume sits in the single busiest row), stacked imbalance run length, and value-area tightness. This is the engine that powers the Flow Signals — Absorption, Exhaustion, and Stacked Imbalance — and the dashboard's live candle readout. It tells you whether the bar you are looking at right now has order-flow weight behind it or is thin air.
🧬 In-Zone Statistics — Each zone is labeled at its center with its star grade, SUPPLY-SIDE or DEMAND-SIDE designation, the numeric score and tier, the volume share as a percentage of total profile volume, the number of completed tests, the hold win rate, the average reaction magnitude in multiples of ATR, and the buy/sell bias split. A typical label reads:★★★☆☆ DEMAND-SIDE · 6.2/10 STR · VOL 12% · TESTS 4 · HOLD 75% · REACT 2×ATR · DEMAND 68/32. Labels can be restricted by score and touch filters, or the text can be turned off entirely for a pure heatmap look. Four label sizes. Price tags at the right edge show the zone mid-line and score at a glance.
📊 Volume-At-Price Histogram — A full horizontal histogram drawn at the right side of the chart, extending beyond the zones. Each bar's width is proportional to the volume at that price level; color follows buy/sell dominance (demand vs supply palette), with the Master POC row highlighted in the dedicated POC color. A minimum-bin filter hides statistical dust. The histogram is the raw material from which every zone is carved — you see the mountain range and the zones simultaneously.
📐 Master POC & Value Area — The Point of Control (the single highest-volume price in the profile) is drawn as a continuous line spanning the full zone range and extending through the histogram, tagged with its exact price. The Value Area High and Value Area Low (default 70% of total volume) are drawn as dashed lines with labels. Together these three references give you the fair-value anchor for the entire lookback: price above VAH is in premium territory, price below VAL is at a discount, price inside the value area is at equilibrium.
🔬 Per-Candle Footprint — An optional intrabar footprint drawn inside the most recent N candles (default 10). Each row shows block-character bars proportional to volume or delta at that price level, color-coded by buy/sell dominance. Rows outside the candle's value area are muted; the POC row is highlighted. A value-area outline box frames the candle's internal equilibrium. On high-strength candles (score above a configurable threshold), the tier abbreviation is printed directly inside the footprint. This is the microscope — you see exactly where the volume parked inside the bar you just traded.
🎯 Naked POC Tracking — Optionally, every candle whose internal strength score exceeds a threshold spawns a dotted POC line that extends right until price actually trades through it. Once tested, the line is deleted. A cap on active naked POCs (default 8) keeps the chart clean. These are untested fair-value anchors — price tends to return to them, and their persistence means the auction has not yet cleared that liquidity.
NQ
⚡ Order-Flow Signals — Three micro-structural signals fire on confirmed bars:
▪️ ABS — Absorption. Delta dominance is high (>35%), but the candle body is small (<30% of range) and relative volume is elevated (>1.2×). One side absorbed the other's aggression without moving price. The direction hint points opposite to the absorbed delta: if selling was absorbed, the signal is bullish.
▪️ EXH — Exhaustion. Relative volume is elevated (>1.3×), delta is flat (<12%), and price closed near the high or low. Aggression was spent without conviction. The direction hint points away from the extreme: exhaustion at the high is bearish.
▪️ STK — Stacked Imbalance. Three or more consecutive rows of one-sided imbalance (buy vs adjacent sell, or vice versa, at the configured ratio, default 3×). A directional imbalance stack is a footprint of institutional execution.
Signals appear as tiny labeled markers at the high or low of the candle, color-coded by direction. They are not zone entries — they are real-time flow readings that confirm or deny what the zones are telling you.
📋 Live Command Dashboard — A compact panel that answers the questions you actually ask a volume-zone tool, organized into four sections:
▪️ LIVE ORDER FLOW — Bar Delta with a fill meter, Buy/Sell split with a dual-tone bar, Cumulative Volume Delta with trend arrows, Session Delta, Candle Score with tier, and the active Flow Signal with direction tag. This is the real-time pulse: who is hitting whom right now.
▪️ VOLUME PROFILE — Master POC price and position relative to close, Value Area range with a width meter, VA Location (inside or outside), and Profile Depth (bars processed, bins, zones carved). This is the structural map: where is fair value, how wide is it, how deep is the data.
▪️ REACTION ZONE RADAR — Up to six zones ranked by strength score, each showing price, star grade, score, bias (DEMAND / SUPPLY / BATTLE), test count, and hold win rate. The strongest zone on the chart is always row one. This is the hit list.
▪️ REGIME — Volatility state (COMPRESSED / NORMAL / EXPANSION) based on ATR14 vs ATR100, Zone Status (IN SUPPLY / IN DEMAND / OPEN AIR) with the in-zone score, and Nearest Supply / Nearest Demand with star grades. This is the tactical read: are you in a wall, are you in open air, how far to the next wall.
🔒 Non-Repainting — Lower-timeframe data is requested on confirmed bars only. Volume is accumulated into the histogram only after the chart bar closes. Zones are carved on the last bar of the chart from the completed histogram and then projected — they do not shift, flicker, or disappear retroactively within their lookback window. The candle strength score updates on confirmation. This is the honest tradeoff of order-flow structure: you wait for the bar to close, and in exchange the reading is real.
🔔 Native Alerts — Five condition alerts:
▪️ Volumetric Zone Entry — price enters any displayed zone.
▪️ Strong Volumetric Zone Entry — price enters a zone scoring 7+ (VERY STRONG / EXTREME). The one alert most people will actually run.
▪️ Volumetric Zone Exit — price leaves a zone.
▪️ High-Strength Candle — a confirmed candle scores 7+ on the order-flow engine.
▪️ Order-Flow Signal — an Absorption, Exhaustion, or Stacked Imbalance signal fires on any confirmed bar.
🎨 Five Theme Palettes — Obsidian Aurora (teal/coral/purple), Obsidian Gold (emerald/vermillion/gold), Deep Ocean (cyan/rose/indigo), Midnight Ember (mint/ember/amber), and Graphite Mono (silver/steel/white). Every palette is engineered for a pure-black chart background: deep, saturated, never toxic. Full custom override is available for demand, supply, POC, and accent colors. Zone shading scales opacity directly off the score — weak zones stay faint, extreme zones render solid. You read conviction with your peripheral vision before you read a single number.
Silver
🔧 Fully Customizable — Intrabar granularity (auto or manual), profile lookback, bin resolution, max zones, node isolation radius, min node volume, zone edge cutoff, max zone width, min tests and min score filters, right extension, zone text and price tag toggles, text size, mid-line width and fade, histogram toggle/width/floor, Master POC toggle, Value Area toggle and percentage, footprint toggle/bars/rows/type/max-length/candle-VA/strength-text/threshold, naked POC toggle/min-score/cap, signal toggle and imbalance ratio, dashboard toggle/position/size, theme selection, custom colors, and all five scoring weights for both zones and candles — all adjustable.
🎯 Why this is different — Most volume tools dump a histogram on your chart and leave you guessing which rows matter. Most zone tools draw every pivot they find with no weighting, no testing, no delta, no bias. This one reconstructs the order flow, carves zones from confirmed high-volume nodes, tracks how many times price tested each one and whether it held, measures the reaction magnitude, reads the buy/sell sponsorship inside the zone, and grades the result 0–10. You read the zone, the volume behind it, the delta skew, the hold rate, and the conviction score — at a glance. The chart itself does the filtering.
🚀 Apply to Gold XAUUSD, Silver, Forex, Crypto and Indices on any timeframe with intrabar data.
🎯 How To Trade It — Two Approaches
Everything hinges on the grade and the hold rate. A WEAK zone with no tests is noise you can see; a STRONG or EXTREME zone with a 70%+ hold rate and demand-side bias is where institutional volume has already defended. Trade the graded zones, and use the dashboard's Zone Status and Volatility Regime to confirm the trade has the right environment.
◾ 1 REACT at the zone — trade the rejection
This is the tool's core use. Price arrives at a high-graded zone and you fade the touch back toward the opposite side of the ladder.
▪️ Setup: wait for price to reach a STRONG / VERY STRONG / EXTREME zone — ideally one with a high hold rate and a clear DEMAND or SUPPLY bias. Check the dashboard: is it the top-ranked zone on the radar? Is the Volatility Regime in NORMAL or EXPANSION (not compressed — compressed means no fuel for a reaction)? Is the Candle Score on the approach bar showing Absorption or Stacked Imbalance in your direction?
▪️ Entry: on rejection out of the zone, with your own confirmation — a wick, an engulfing close, a lower-timeframe structure break, or an order-flow signal that validates the rejection. The zone is the location; it is not the trigger.
▪️ Stop: on the far side of the zone band. The zone has real width derived from the volume distribution — use it. A decisive close through the zone means the volume was cleared and the thesis is wrong.
▪️ Targets: the Nearest ▼ demand or Nearest ▲ supply on the opposite side, then step through the radar tier by tier, banking partials at each graded zone.
⚖️ The cleanest version: price runs into an EXTREME demand zone with 80% hold rate, the Candle Score on the approach prints ABS (absorption), the Volatility Regime shows EXPANSION, and price rejects on the first touch. First touches of fresh high-graded zones with order-flow confirmation are the setup; the fifth retest of the same zone is not.
◾ 2 TRADE THE BREAK — the zone flips role
The mirror case, and the one that saves you when approach 1 fails.
▪️ Setup: a decisive close through a high-graded zone — especially one with a strong hold rate — is meaningful information. It took real volume displacement to clear a level that the market had been defending. Check the delta inside the zone on the break bar: if the breaking candle has strong delta in the break direction, the liquidity was genuinely absorbed, not just pierced.
▪️ Entry: on the retest of the broken zone from the other side, once it has flipped from supply to demand or demand to supply. Wait for price to return to the zone and show respect — a wick, a small-body candle, an absorption signal.
▪️ Stop: back on the original side of the zone. If price reclaims it, the break failed and the original bias holds.
▪️ Targets: the next graded zone in the direction of travel, then the next. Use the radar: if all remaining zones in the direction are weak and untested, structure is thin and the move may extend.
⚖️ Watch the top-ranked zone on the radar. When the strongest zone on the chart breaks and holds as a flip, that is the session's structural event. The naked POCs ahead become magnets.
Rule of thumb: ⭐ First touch of a fresh STRONG / EXTREME zone with high hold rate and Volatility in NORMAL or EXPANSION → look for the rejection trade. ⭐ Decisive close through a high-graded zone confirmed by Candle Score and delta → stop fading it, wait for the retest and trade the flip. ⭐ Low grades, no tests, compressed volatility, or a zone already tested repeatedly → no trade. The score exists to tell you when to do nothing.
⚠️ IMPORTANT NOTICE: Strong Volumetric Zones maps and ranks volume-derived supply and demand zones from reconstructed lower-timeframe order flow. The 0–10 zone score is a descriptive conviction ranking built from volume share, touch count, hold win rate, freshness and delta skew — it is not a backtested win-rate, and this indicator tracks no trade outcomes and reports no performance statistics. The 0–10 candle strength score is built from relative volume, delta dominance, POC concentration, stacked imbalance and value-area tightness — also a descriptive reading, not a signal with a verified edge. Zones are locations, not entries. Volume accumulation occurs only on confirmed bars. These zones are decision support, not a standalone trade trigger. Always combine them with your own strategy, price-action confirmation and risk management. Past behavior does not guarantee future results. Indikator
Indikator
Liquidity Radar Engine [MarkitTick]💡 The financial markets operate on a continuous search for liquidity, moving dynamically from areas of consolidation to zones of unmitigated resting orders. This technical evaluation tool is engineered to objectively map these critical liquidity thresholds and provide a comprehensive framework for identifying high-probability market reversals and continuation phases. By tracking the exact interaction between historical pivot structures and real-time volume dynamics, it offers a highly systemic, algorithmic approach to charting price action.
✨ Originality and Utility
● A Synergistic Approach to Market Dynamics
Standard technical tools typically evaluate a single dimension of market data, such as momentum or trend direction, which frequently leads to fragmented analysis and false signals. This script stands out by synthesizing pure price structure, volume delta approximation, and multi-timeframe consensus into a unified visual environment. It removes the guesswork from order block and liquidity trading by mathematically defining structural shifts.
• Justification of the Integrated Logic
This tool is a deliberate fusion of price action concepts and mathematical volume filtering. Relying strictly on a breakout of a previous day's high or low can be highly susceptible to false moves and liquidity traps. By incorporating a relative volume (RVOL) filter and a proprietary candle-based delta estimation, the tool validates structural shifts with quantifiable market participation. Additionally, the inclusion of momentum divergence protocols ensures that price action is aligned with the anticipated structural pivot, filtering out low-probability setups in exhausted trends.
🔬 Methodology and Concepts
● Core Analytical Framework
The script operates by mapping significant price extremes across varying temporal horizons and evaluating the market's precise reaction when these zones are breached.
• Liquidity Sweep Detection
The algorithm constantly monitors the Highs and Lows of the Previous Day, Week, and Month. When current price action breaches one of these levels but fails to sustain the breakout—closing back inside the defined range—a sweep zone is generated. This defines a failed auction mechanism where stops may have been triggered without genuine directional follow-through from larger market participants.
• Equal Highs and Lows (EQH/EQL)
To identify resting liquidity pools, the script evaluates historical pivot points within an adjustable lookback window. Using the Average True Range (ATR) as a dynamic tolerance threshold, it mathematically defines whether two separate swing points are functionally "equal," marking them as magnetic targets for future price action.
• Structural Shifts and Displacement
Once a sweep occurs, the engine scans for a localized Change in State of Delivery (CISD). A valid shift requires displacement, which is measured by comparing the breakout candle's body size against a moving average of recent candle bodies, or by the immediate formation of a Fair Value Gap (FVG).
• Multi-Factor Validation
Signals are not generated strictly on price structure. They must pass a rigorous matrix of internal filters:
Relative Volume (RVOL): Requires the sweep or shift to occur with volume significantly exceeding the recent moving average.
Cumulative Volume Delta (CVD): Approximates buying and selling pressure within the candle spread to confirm directional momentum.
Trend Alignment: Evaluates the current price against a long-term Exponential Moving Average (EMA).
Volatility Squeeze Avoidance: Uses ATR ratios to actively block signals in exceptionally low-volatility environments.
Currency Correlation: Compares the traded pair against a reference index to ensure macroeconomic alignment.
News Blackout: Blocks all signals during user-defined, high-impact news windows to protect against erratic slippage.
🎨 Visual Guide
● Chart Elements and Topography
The visual interface is meticulously designed to present complex, multi-dimensional data without obfuscating the primary candlestick action.
• Historical Liquidity Levels
PDH/PDL Lines: Displayed as subtle, translucent lines indicating the Previous Day's High and Low.
PWH/PWL Lines: Denoting the Previous Week's extremes in distinct, moderately visible hues.
PMH/PML Lines: Marking the Previous Month's extremes for macro higher-timeframe context.
Equilibrium Line: A distinct midline drawn between the daily extremes to gauge intraday premium and discount pricing.
• Structural Zones and Markers
Sweep Zones: Highlighted boxes marking the exact area of a failed breakout. Buy-side sweeps appear in a muted green-toned box, while sell-side sweeps are marked in a red-toned box. These zones feature active aging, gently fading as time progresses.
FVG Clouds: Displayed as gold or yellow background areas denoting supply/demand imbalances.
EQH/EQL Markers: Small textual annotations above or below the price, bounded by a semi-transparent box, indicating concentrated liquidity pools.
• Execution and Management Visuals
Signal Labels: Distinct text markers indicating validated Buy or Sell conditions upon bar close.
Position Boxes: When a signal is active, a structured box appears showing the Entry level (dashed neutral line), Stop Loss (dashed red line), and up to three Take Profit targets (dashed teal lines).
Heatmap Candles: The main chart candles are dynamically colored based on the dominant daily bias or RSI momentum.
• The Multi-Timeframe (MTF) Dashboard
A tabular data panel positioned on the chart displays the trend and liquidity status across three distinct timeframes. It also features a comprehensive statistics section monitoring the active trading session, the current volatility regime, the count of unfilled fair value gaps, and the dynamic risk-to-reward ratio of any open simulated positions.
📖 How to Use
● Interpreting the Data
The primary workflow involves observing the direct interaction between price velocity and the mapped structural zones.
• Executing an Analysis
Wait for a visual Sweep Zone to form, indicating that a significant historical level has been tested and rejected by the market.
Observe the Signal Labels. A signal is only printed if the internal confluence engine—validating volume, delta, and structural displacement—has fully approved the setup.
If the FVG entry model is active, wait for price to retrace into the highlighted Fair Value Gap cloud before considering the setup valid for engagement.
• Trade Management
Utilize the plotted Position Boxes to evaluate the mathematical risk profile. The entry, stop loss, and targets are drawn directly on the chart for immediate visual feedback.
Monitor the MTF Dashboard to ensure the lower timeframe execution signal is not fighting a dominant higher timeframe trend.
If Dynamic Trade Management is enabled, closely observe the Stop Loss line as it automatically trails price based on the selected ATR, Swing, or Chandelier mathematical logic.
⚙️ Inputs and Settings
● Configuration Options
The script is heavily modular, allowing for extensive adjustment of its internal validation logic.
• General and Display Limits
Toggle the visibility of specific liquidity levels (Daily, Weekly, Monthly) and limit the maximum number of historical zones, FVG clouds, or signal boxes retained on the chart to maintain a highly optimized workspace.
• Validation Filters
Volume Validation: Adjust the Moving Average length and the RVOL threshold multiplier to define what constitutes a genuine volume climax.
Delta Filter: Toggle the requirement for estimated volume delta to perfectly align with the signal direction.
Divergence Source: Choose whether the script requires RSI, MACD, or a combination of both to display divergence before validating a reversal.
ADX Threshold: Define the strict minimum trend strength required for continuation signals.
• Target and Management Settings
Risk to Reward (R:R) Inputs: Define the exact mathematical multiples for Target 1, Target 2, and Target 3.
Position Sizing: Input an account balance and risk percentage to have the engine calculate the exact unit size for the plotted setup.
Trailing Logic: Select between None, ATR-based, Swing-based, or Chandelier-based trailing stops, complete with user-defined multiplier adjustments and partial profit scaling.
• Dashboard and Visual Preferences
Modify the specific timeframes monitored by the MTF panel, alter its position, and heavily customize the color palettes for all sweep zones, lines, heatmaps, and interface text.
🔍 Deconstruction of the Underlying Scientific and Academic Framework
● Theoretical Foundations
The architecture of this script is grounded in several well-documented financial theories, primarily focusing on Auction Market Theory and the statistical modeling of price volatility distributions.
• Auction Market Theory and Liquidity
The core premise of the sweep detection logic rests securely on the concept of order matching and liquidity cascades. Markets move constantly to facilitate trade, frequently gravitating toward areas with a high density of resting stop orders, such as historical highs and lows. When these areas are breached but fail to attract aggressive participation, the auction process is deemed to have failed. This script mathematically quantifies these failed auctions by tracking the spatial relationship between the breakout wick and the closing price relative to the historical pivot.
• Statistical Variance and Normalization
The tool heavily utilizes the Average True Range (ATR) as a core normalization factor. Financial time series exhibit continuous heteroskedasticity, meaning volatility varies over time. Hardcoding a fixed point-value for concepts like "Equal Highs" or "Trailing Stops" is mathematically flawed. By utilizing ATR ratios, the algorithm rapidly adapts its spatial thresholds to the current standard deviation of price movement, ensuring highly consistent behavior across varying market regimes and asset classes.
• Momentum Divergence and Rate of Change
The inclusion of oscillators like the Relative Strength Index (RSI) and Moving Average Convergence Divergence (MACD) serves to measure the first and second derivatives of price—specifically velocity and acceleration. By actively requiring a divergence between price extremes and momentum extremes, the script effectively filters for environments where the kinetic energy of the prevailing trend is decaying, thereby increasing the statistical probability of a mean-reverting event or structural reversal.
• Volume Delta Approximation
While granular tick data is technically required for an exact volume delta calculation, the script employs a highly robust approximation algorithm that distributes volume proportionally across the candle's spread. This provides a quantifiable metric of localized supply and demand imbalances, adhering strictly to the Wyckoffian principle of Effort versus Result, ensuring that price moves are backed by actual transactional weight.
⚠️ Disclaimer
All provided scripts and indicators are strictly for educational exploration and must not be interpreted as financial advice or a recommendation to execute trades. We expressly disclaim all liability for any financial losses or damages that may result, directly or indirectly, from the reliance on or application of these tools. Market participation carries inherent risk where past performance never guarantees future returns, leaving all investment decisions and due diligence solely at your own discretion. Indikator

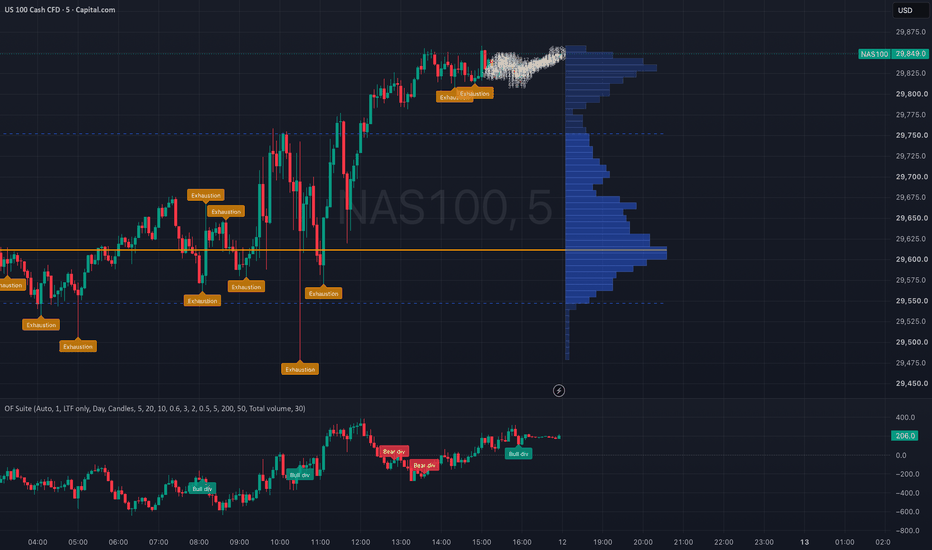

Orderflow Suite [martineye15]Orderflow Suite — four order-flow tools in one indicator: Cumulative Volume Delta, footprint bars, imbalance / absorption signals, and a volume profile. Each module toggles independently, so you can run the full suite or just the part you need. CVD gets its own pane; the footprint, signals and profile draw directly on the price chart, so no second script is required.
MODULES
- Cumulative Volume Delta (CVD): running buy-minus-sell volume, with Session / Day / Week / None reset anchoring and a Line, Columns or Candle display (candles show open = previous CVD, close = new CVD, wicks from the intrabar delta extremes). Optional price-CVD divergence: bearish when price makes a higher high while CVD makes a lower high, bullish when price makes a lower low while CVD makes a higher low.
- Footprint bars: the most recent bars are split into price bins, each showing aggregated buy x sell volume, shaded by its net delta, with the bar's highest-volume bin (VPOC) framed.
- Imbalance & absorption: delta-imbalance triangles when |delta| / volume passes a threshold, stacked-imbalance zones when several same-direction imbalance bars line up, plus absorption labels (heavy volume in a tight range near a swing) and exhaustion labels (a new swing high on negative delta, or a new swing low on positive delta).
- Volume profile: a volume-at-price histogram over a lookback window with POC, value-area high / low and the 70% value area, in total-volume or delta-coloured mode.
DELTA ENGINE (please read)
TradingView does not provide a true bid/ask tick feed, so delta here is an approximation, not exchange order flow. Historical delta is estimated from lower-timeframe intrabars: an intrabar counts as buy volume when it closes above its open, sell volume when below, and is split evenly on an unchanged close. On the live bar you can optionally accumulate tick-based delta instead (uptick = buy, downtick = sell). Because TradingView does not store ticks, realtime values built this way can differ from what the same bar shows after a chart refresh. Treat every delta value as an estimate.
ALERTS
Ten conditions: CVD bullish / bearish divergence, bullish / bearish imbalance, stacked bullish / bearish imbalance, absorption at highs / lows, and exhaustion top / bottom.
HOW TO USE
Add it to a symbol that has volume (crypto, futures or stocks — spot forex usually has no real volume, and the tool will tell you so). Intraday timeframes from about 1 minute to 1 hour work best. Turn on the modules you want, set the delta engine (lower-timeframe auto / manual, and optional realtime tick mode), and adjust the per-module thresholds and sizes. Use CVD and its divergences for momentum and non-confirmation, the footprint and profile to see where volume actually traded, and the imbalance / absorption / exhaustion signals as context around swings. Set alerts on any of the ten conditions.
WHAT MAKES IT DIFFERENT
It combines CVD, footprint, imbalance / absorption and a volume profile in a single indicator, sharing one delta engine and drawing the price-chart modules through force_overlay from a lower pane — a combined order-flow view without stacking several scripts. Drawing counts are budgeted internally so the modules together stay within TradingView's object limits.
REPAINTING & LIMITATIONS
Confirmed-bar behaviour is stable: footprints are built on closed bars, CVD divergences use confirmed pivots (so they appear a few bars after the pivot — normal pivot lag, not repainting), and the profile is computed over completed bars. The delta approximation is the main caveat: the live bar's delta is an estimate, and if you enable realtime tick mode, the live values will not match the same bar's historical lower-timeframe values after a refresh — this is inherent to how TradingView exposes data and is noted in the input tooltips. One-second intrabars need a plan with seconds data; without it the tool uses a one-minute fallback, and very old bars beyond the intrabar budget fall back to whole-bar classification. A symbol with no volume cannot produce delta and will show a notice instead.
This is a visual, decision-support tool. It is not a strategy, it places no orders and reports no performance statistics, and it is not financial advice. Indikator
Flow Pressure Zones [BOSWaves]Volume Flow Zones - Body-Ratio Volume Flow Scoring with Baseline Fuel Visualization and Counter-Trend Reversal Zone Detection
Overview
Volume Flow Zones is a volume-weighted flow intensity system that scores each bar by the combined strength of its body-to-range ratio and volume participation relative to its rolling average, where baseline fuel candle height, price candle gradient intensity, and reversal zone placement are all driven by this normalized flow score rather than fixed thresholds or arbitrary indicator crossovers.
Instead of relying on raw volume or price direction alone, the flow score combines how convincingly price moved within the bar's range with how significant the bar's volume was relative to recent history, producing a single normalized conviction reading that reflects both the directional commitment and the participation weight behind each bar. This score then drives every visual layer of the indicator simultaneously, from the height of the fuel candles on the baseline to the brightness of the price candle coloring to the conditions required for a reversal zone to be planted.
This creates a flow monitoring framework that communicates momentum quality continuously rather than at discrete signal events. The baseline fuel candles grow and shrink with the flow score on every bar, the glow around the WMA baseline intensifies during high-flow periods, price candles brighten toward full trend color during strong participation and dim toward neutral during weak flow, and yellow reversal candles fire when meaningful counter-trend flow appears against the prevailing trend direction, at which point a forward-projecting reversal zone is planted at the bar's extreme.
Price is therefore evaluated not just for direction relative to the baseline but for the quality and intensity of the flow supporting that direction on every bar.
Conceptual Framework
Volume Flow Zones is founded on the principle that directional price movement carries meaningfully different conviction depending on how decisively price closed within the bar's range and how significantly volume participated relative to recent norms, and that these two dimensions together produce a more reliable flow quality reading than either dimension alone.
Traditional momentum tools measure direction through crossovers or oscillator levels that treat all bars equally regardless of whether a move was driven by decisive high-volume conviction or by drifting low-volume noise. This framework replaces uniform direction measurement with a per-bar flow quality score that distinguishes between genuine momentum and low-conviction price movement, encoding that distinction across every visual element so that chart reading reflects real participation dynamics rather than mechanical indicator states.
Three core principles guide the design:
Flow quality should be measured by combining body dominance within the bar range with volume significance relative to the rolling average, producing a score that captures both directional decisiveness and participation weight simultaneously.
The flow score should drive all visual outputs proportionally and continuously, with fuel candle height, price candle brightness, and baseline glow all scaling in real time to the current flow reading rather than switching between fixed states.
Counter-trend flow events meeting minimum quality thresholds should generate forward-projecting reversal zones anchored to the bar extreme where the opposing flow appeared, marking structural reference levels for potential trend exhaustion and reversal.
This shifts trend analysis from binary directional state monitoring into continuous flow quality measurement where visual intensity across every chart layer communicates conviction strength in real time.
Theoretical Foundation
The indicator combines WMA-based trend direction, body-to-range ratio measurement, volume SMA normalization, flow score derivation with rolling normalization, reversal detection through close position and volume threshold testing, and an ATR-scaled fuel candle system that projects flow intensity visually from the baseline.
The WMA baseline provides a weighted directional reference that gives greater importance to recent price activity, establishing the trend context that determines fuel candle positioning and reversal direction qualification. The body ratio measures what fraction of the bar's total range the body occupies, with higher ratios indicating more decisive directional commitment. Volume normalization divides each bar's volume by its SMA baseline and caps the result at three, preventing extreme volume spikes from overwhelming the score. The raw flow score multiplies body ratio by normalized volume, and a rolling highest-lowest normalization converts the raw score to a 0-1 range that adapts to the instrument's typical flow distribution. Reversal detection tests close position within the range, bar direction, and volume normalization simultaneously, requiring all three conditions to be met before a reversal event qualifies.
Four internal systems operate in tandem:
Flow Score Engine : Calculates body ratio from open-close range divided by high-low range, normalizes volume against its SMA baseline, multiplies the two to produce raw flow, then normalizes the raw flow against its rolling highest and lowest values to produce the final 0-1 score that drives all downstream visual systems.
Baseline Fuel Candle System : Positions ATR-scaled candles above the baseline for bearish trends and below for bullish trends, scaling their height proportionally to the current flow score so that fuel candle length grows and shrinks with each bar's flow intensity and coloring intensifies with a power-transformed opacity gradient.
Price Candle Gradient System : Colors chart candles from a dimmed version of the trend color at low flow scores to full saturation at high flow scores using a power-transformed gradient, with yellow override on any bar where counter-trend reversal conditions are met regardless of trend state.
Flow Reversal Zone Engine : Monitors for qualifying counter-trend flow events meeting close position, direction, and volume thresholds above the minimum flow score, plants ATR-scaled zones with dashed midlines at the bar extreme on confirmed qualifying bars subject to cooldown enforcement, extends zones forward until price closes through them on two consecutive bars.
This design allows every chart element to reflect the current flow score simultaneously while the reversal zone system independently tracks and maps the structural locations where meaningful counter-trend flow appeared.
How It Works
Volume Flow Zones evaluates price through a sequence of flow-aware scoring and visualization processes:
WMA Baseline Calculation : The Weighted Moving Average is calculated over the configured length, with trend direction determined by whether close is above or below the baseline on each bar.
Body Ratio Measurement : The absolute difference between close and open is divided by the high-low range to produce a 0-1 body ratio, with higher values indicating bars where price moved decisively in one direction relative to its total range.
Volume Normalization : Raw volume is divided by the Volume SMA baseline and capped at 3.0, producing a score that reflects whether the bar's participation was below average, average, or significantly above average relative to recent history.
Raw Flow Calculation : Body ratio is multiplied by normalized volume to combine directional decisiveness with participation weight into a single raw flow reading.
Rolling Normalization : The raw flow is normalized against its highest and lowest values over the configured lookback window, producing a 0-1 score that adapts to the instrument's typical flow range and maintains consistent visual scaling across different volatility regimes.
Reversal Condition Testing : Counter-trend pressure is identified when close position within the bar range is below 0.35 on a down-close bar with volume above 1.2 times SMA for bearish pressure, or above 0.65 on an up-close bar with the same volume threshold for bullish pressure. These conditions combined with the flow score threshold and trend direction determine whether a reversal event qualifies.
Price Candle Coloring : The normalized flow score is power-transformed and mapped to a gradient between a dimmed and full-saturation version of the trend color. Reversal bars override this coloring with full yellow regardless of score or trend direction.
Fuel Candle Rendering : ATR-scaled open and close prices are calculated from the WMA with the configured offset, with candle height proportional to the flow score. Fuel candles render below the baseline during uptrends and above during downtrends, with opacity power-transformed from the flow score and yellow coloring applied on reversal bars.
Baseline Glow Rendering : A wide low-opacity version of the WMA line and a thinner core line are plotted with transparency inversely proportional to a smoothed flow average, producing a glow effect that intensifies during sustained high-flow periods.
Reversal Zone Planting : On confirmed reversal bars satisfying the cooldown requirement, an ATR-scaled zone is planted centered on the bar's low for bullish reversals and high for bearish reversals, with a dashed midline and forward extension. Overlapping same-direction zones are removed before the new zone is added.
Zone Lifecycle Management : All active zones extend rightward on each bar. When close has been below the zone bottom for two consecutive bars for bullish zones or above the zone top for two consecutive bars for bearish zones, the zone is deleted.
Together, these elements form a continuously updating flow monitoring system where baseline fuel candles, price candle gradients, and reversal zones all derive from the same underlying flow score, producing a visually unified conviction map across every chart element.
Interpretation
Volume Flow Zones should be interpreted as a flow quality visualization system with structural counter-trend zone mapping:
WMA Baseline : The Weighted Moving Average provides the primary trend reference with a glow that brightens during sustained high-flow periods, providing an immediate visual indicator of whether the current trend is being supported by strong or weak participation.
Bullish Trend State (Green) : Active when close is above the WMA, with fuel candles projecting below the baseline and price candles coloring green with intensity scaling from the flow score.
Bearish Trend State (Red) : Active when close is below the WMA, with fuel candles projecting above the baseline and price candles coloring red with intensity scaling from the flow score.
Fuel Candle Height : The primary flow intensity indicator, growing with each bar's flow score and shrinking during low-conviction periods. Tall fuel candles indicate strong directional participation. Short or barely visible fuel candles indicate weak flow with low conviction behind the current price movement.
Fuel Candle Opacity : The transparency of each fuel candle further encodes flow strength, with near-opaque candles representing peak-intensity flow events and highly transparent candles representing low-intensity bars.
Price Candle Gradient : Price candles brighten toward full trend color saturation at high flow scores and dim toward a muted version of the trend color at low flow scores, providing an immediate bar-level conviction reading directly on the candlestick.
Yellow Candles : Both the price candle and fuel candle flash yellow on bars where qualifying counter-trend flow is detected, immediately identifying potential exhaustion or reversal events within the current trend.
Flow Reversal Zones : Horizontal zones with dashed midlines planted at bar extremes where qualifying counter-trend flow appeared, projecting forward as structural reference levels for the price level where opposing flow was significant enough to register. Bullish reversal zones are colored green, bearish reversal zones red.
Fuel candle height dynamics, price candle brightness, yellow reversal identification, and zone proximity collectively provide more flow intelligence than any element in isolation.
Signal Logic & Visual Cues
Volume Flow Zones presents two primary reversal signal types alongside continuous flow intensity monitoring:
Bullish Reversal (Yellow) : Triggered when price closes in the upper portion of the bar's range on an up-close bar with above-average volume during a downtrend, with flow score exceeding the minimum threshold. Plants a bullish reversal zone below the bar and flashes both price and fuel candles yellow.
Bearish Reversal (Yellow) : Triggered when price closes in the lower portion of the bar's range on a down-close bar with above-average volume during an uptrend, with flow score exceeding the minimum threshold. Plants a bearish reversal zone above the bar and flashes both price and fuel candles yellow.
Zone cooldown enforcement prevents multiple zones from planting in rapid succession, spacing reversal references to only the most significant qualifying events within each cooldown window.
Alert generation covers bullish and bearish reversal flow events and WMA bullish and bearish flips for systematic trend monitoring workflows.
Strategy Integration
Volume Flow Zones fits within flow-informed trend-following and counter-trend monitoring approaches:
Fuel Candle Conviction Reading : Use fuel candle height as a continuous trend health gauge. Consistently tall fuel candles during a trend indicate sustained directional commitment. Progressively shrinking fuel candles within an established trend suggest flow is weakening before any price indicator or crossover confirms the deterioration.
Yellow Candle Context : Use yellow reversal candles as early warning signals within trends rather than as standalone entry triggers. A single yellow candle mid-trend may indicate temporary absorption. Multiple yellow candles within a short window suggest building counter-trend pressure warranting reduced confidence in continuation.
Reversal Zone Reference Trading : Use planted reversal zones as structural reference levels where meaningful opposing flow previously appeared. Price returning to these zones encounters the price level where prior counter-trend activity was significant enough to meet the reversal detection criteria.
WMA Flip Entries : Use WMA direction changes combined with high fuel candle readings immediately following the flip as trend initiation entries, favoring flips that coincide with strong flow scores over flips that occur during low-conviction flow conditions.
Flow Divergence Detection : Monitor for situations where price is making new highs or lows but fuel candle height is diminishing, indicating that price extension is occurring on weakening flow and increasing the probability of reversal or consolidation.
Multi-Timeframe Flow Alignment : Apply higher-timeframe WMA direction and fuel candle intensity as directional context filters, engaging with lower-timeframe reversal zones and yellow candle signals only when they align with the broader flow state established on the higher timeframe.
Technical Implementation Details
Baseline Engine : Weighted Moving Average with configurable length for trend direction and fuel candle anchoring
Flow Score : Body-to-range ratio multiplied by volume SMA normalization with rolling highest-lowest normalization over configurable lookback
Reversal Detection : Close position threshold, bar direction, and volume normalization minimum combined with flow score floor and trend direction gating
Fuel Candles : ATR-scaled height with configurable multiplier and baseline offset, power-transformed opacity gradient, yellow override on reversal bars
Price Candles : Power-transformed flow gradient from dimmed to saturated trend color with full yellow override on reversal bars
Baseline Glow : Dual-line wide and narrow WMA plots with transparency inversely proportional to smoothed flow average
Zone System : Array-managed ATR-scaled zone boxes with dashed midlines, cooldown enforcement, overlap removal, forward extension, and two-bar consecutive close breach invalidation
Performance Profile : Optimized for real-time execution with configurable zone count cap and array-based lifecycle management
Optimal Application Parameters
Timeframe Guidance:
1 - 5 min : Intraday flow monitoring for scalping with shorter WMA and normalization lengths for faster flow score adaptation to intraday momentum shifts
15 - 60 min : Session-level trend flow tracking with balanced WMA length and moderate zone cooldown for meaningful reversal zone spacing across typical session moves
4H - Daily : Swing-level flow quality monitoring with longer WMA and normalization lookback for sustained flow readings across multi-session directional moves
Suggested Baseline Configuration:
WMA Length : 80
Volume SMA : 20
Normalization Lookback : 80
Offset (ATR%) : 0.4
Candle Height : 2.0
Show Reversal Zones : Enabled
Zone Cooldown : 31
Max Zones : 3
Show Fuel Candles : Enabled
Show Baseline : Enabled
Show Baseline Glow : Enabled
Color Price Candles : Enabled (requires disabling original chart candles in chart settings)
These suggested parameters should be used as a baseline; their effectiveness depends on the instrument's volatility characteristics, volume behavior, and preferred signal density, so fine-tuning is expected for optimal performance.
Parameter Calibration Notes
Use the following adjustments to refine behavior without altering the core logic:
Fuel candles too tall or too short : Adjust Candle Height to scale the maximum fuel candle height relative to ATR. Lower values produce more subtle fuel visualization, higher values produce more prominent height differences between high and low flow bars.
Fuel candles too close or far from price : Adjust Offset (ATR%) to control the gap between the WMA baseline and the near edge of the fuel candles, adapting visual separation to the instrument's typical ATR range.
Flow score too reactive : Increase Normalization Lookback to smooth the normalization window, requiring more bars to recalibrate the flow range and reducing sensitivity to short-term volume spikes.
Flow score too slow to adapt : Decrease Normalization Lookback for faster recalibration of the flow score range, allowing the system to adapt more quickly to changing volatility and volume conditions.
Too many reversal zones forming : Increase Zone Cooldown to enforce greater bar separation between consecutive zone plants, or reduce Max Zones to limit the total number of active reference levels on the chart.
Reversal zones too narrow or wide : Adjust Zone Height (ATR×) to scale the vertical size of each reversal zone relative to ATR, calibrating zone thickness to the instrument's typical noise range at the target timeframe.
WMA too reactive to price : Increase WMA Length for a smoother baseline that filters minor oscillations and reduces frequency of trend direction changes, producing more stable fuel candle positioning and cleaner reversal zone direction assignments.
Adjustments should be incremental and evaluated across multiple session types rather than isolated market conditions.
Performance Characteristics
High Effectiveness:
Trending markets with clear directional momentum where fuel candle height builds during impulse phases and provides early warning of conviction decay before price reverses
Instruments with consistent volume participation where SMA normalization accurately identifies above-average bars and the flow score reliably differentiates high and low conviction moves
Flow divergence strategies where declining fuel candle height during price extension provides early deterioration signals before conventional indicators confirm reversal
Counter-trend monitoring approaches where reversal zones mark the precise price levels where meaningful opposing flow appeared for use as structural reference in subsequent analysis
Reduced Effectiveness:
Choppy, low-volume markets where body ratios are consistently low and volume normalization produces undifferentiated scores, reducing fuel candle height variation and generating frequent yellow candles without meaningful reversal context
Instruments with highly irregular volume distribution where the SMA normalization baseline is distorted by outlier sessions, producing unreliable flow score rankings across typical bars
Extremely fast-moving markets where large body ratios are consistently present on almost every bar, compressing the flow score range and reducing the visual differentiation between high and low conviction periods
Low-ATR instruments where the fuel candle geometry produces visually imperceptible height differences, requiring manual candle height and offset adjustment to produce meaningful visual scaling
Consolidation and sideways conditions where volume participation is mixed and body ratios are low, producing uniformly short fuel candles and frequent yellow candles without the trend context that makes reversal detection structurally meaningful
Integration Guidelines
Confluence : Combine with BOSWaves structural tools, order block analysis, or momentum oscillators to validate reversal zone interactions and yellow candle events with broader analytical context
Fuel Candle Trend Health : Monitor fuel candle height evolution throughout established trends as a continuous conviction health indicator. Progressively shrinking fuel candles during a sustained trend suggest flow deterioration that may precede reversal before price structure confirms the change.
Yellow Candle Clustering : Single isolated yellow candles within a trend carry less weight than clusters of two or more within a short window. Clusters suggest building counter-trend participation that is approaching the threshold required to challenge the prevailing flow direction.
Zone Freshness : Prioritize recently planted reversal zones over older ones. Fresh zones reflect current session flow dynamics while older zones may have formed under different volume and volatility conditions that are no longer representative.
State Discipline : Maintain directional bias aligned with the current WMA trend state until a confirmed WMA direction change occurs. Yellow candles and reversal zones within an established trend are monitoring signals rather than automatic exit triggers and should be interpreted as context rather than directional commands.
Disclaimer
Volume Flow Zones is a professional-grade flow quality analysis and counter-trend monitoring tool. It uses body-ratio volume flow scoring with rolling normalization and reversal zone detection but does not predict future price movements. Results depend on market conditions, instrument volume characteristics, parameter selection, and disciplined execution. BOSWaves recommends deploying this indicator within a broader analytical framework that incorporates price structure, order flow context, and comprehensive risk management. Indikator
OrderFlow FVG Matrix MTF | ProjectSyndicateOrderFlow FVG Matrix reads every Fair Value Gap through the lens of the order flow that created it, across three timeframes at once, then commits a single shaded imbalance zone only where the gap, the delta behind it, and the timeframes agree. Instead of drawing every three-candle gap as an identical box, it detects gaps on your chosen higher timeframes, decomposes the volume that formed each one into buying versus selling, scores the imbalance 0–10 on six order-flow-native factors, and fuses overlapping gaps into one Confluence zone tagged with every timeframe that produced it. Each zone carries its own maroon/green buy-versus-sell split, net delta, absorption and relative-volume read, is normalized to a universal height so none dominate the chart, re-scores as price develops, and is neutralized the moment price mitigates it — while a live diagnostics panel shows the full multi-timeframe order-flow picture driving every zone on the symbol and timeframe you trade.
🧠 Order-Flow Core — the central idea. Every gap is graded not by its size but by the flow that built it. Each of the three candles that form an FVG has its volume split into buying versus selling from where price closed within that candle's range, then summed across the formation to yield buy volume, sell volume, net delta, and a wick-rejection absorption estimate; relative volume compares that participation to a rolling baseline. This is what separates a gap born of violent one-sided displacement from a thin, low-conviction gap that merely looks the same. Because the read is derived from price geometry rather than lower-timeframe intrabar requests, it keeps working even where only tick volume is available — gold, FX, and similar instruments — instead of going blank.
📐 Multi-Timeframe FVG Detection — three lenses, one map. Gaps are detected independently on three fully configurable timeframes (default H1 · H2 · H4), with bullish and bearish detection separately toggleable. Each timeframe runs its own self-contained detector on its own confirmed bars, and a gap must clear an ATR (or percent-of-price) filter to qualify. Higher-timeframe data is read with no lookahead, so a zone's price, class and statistics are fixed once its bar closes — the zones do not repaint.
🔗 Confluence Merging — no overlapping zones, ever. When two same-direction zones overlap within an adjustable ATR tolerance, they fuse into one. The order flow is re-aggregated — volumes and delta summed, buy/sell percentage and relative volume recomputed, the band re-centered on the weighted midpoint — and the zone is re-labeled Confluence FVG · H1·H2·H4 with every contributing timeframe, its strength lifted by a confluence bonus for each extra timeframe stacked in. The consolidation repeats until nothing overlaps, so the chart never stacks bands or duplicates labels: three timeframes agreeing at a level read as one stronger zone, not a cluttered pile.
📏 Universal Zone Height. Every gap is normalized to a single fixed height — ATR-based or a percentage of price — centered on the gap's midpoint. Thin gaps and wide gaps render as uniform bands, so no imbalance becomes a tall tower and the chart stays clean; the strength score, not the raw gap size, tells you which levels actually matter.
⭐ 6-Factor Strength Engine (0–10). Each zone is scored on six order-flow-native factors, every weight adjustable: Displacement (gap size versus ATR), Delta Alignment (did buying confirm a bullish gap, or selling a bearish one), Relative Volume (participation versus baseline), Flow Dominance (how one-sided the split was), Middle-Candle Body (displacement conviction), and Absorption (wick-rejection volume). The result maps to a tier word rendered inside the zone — WEAK · SOFT · FAIR · HIGH · PEAK — and to a star read on the dashboard. Read it as a confluence / cleanliness rank: how textbook the imbalance is, not a guaranteed outcome.
🎯 Shaded Zones + Order-Flow Split Bars. Each zone is a maroon (bearish) or dark-green (bullish) shaded band, opacity graded by strength, with the tier word spelled across gradient cells and a timeframe / confluence badge pinned to it. To the right of price, a two-bar order-flow split renders the bearish percentage (maroon) over the bullish percentage (dark green), and a stat label prints net delta, total volume and relative volume — so the participation behind every level is visible at a glance and factored into how it is graded.
🩶 Self-Invalidation + Filled History. Zones extend forward and re-score as price develops. The instant price mitigates a zone — by Touch, 50% fill, or full fill, your choice — it is neutralized: recolored to a muted dark-grey and frozen, so a filled level reads as spent context, never as a live signal. A history cap keeps grey levels from accumulating into clutter, and you can drop filled zones entirely for a strictly-live view.
📊 Live Multi-Timeframe Dashboard. A compact institutional panel tracks, in real time on your chart: a per-timeframe grid — active bull and bear zone counts plus directional bias for each of your three timeframes; Key Zones — the strongest zone, plus the nearest zone above and below price, each with its timeframe set and star score; Flow Pressure — aggregate FVG net delta with an ACCUM / DISTRIB regime read, live chart delta, relative volume, CVD bias and session; and running active / confluence / filled counts. It is a live read of the engine's current state on your symbol — not a backtest and not a printed statistic.
🎚️ Declutter & Conviction Controls. A tight set of dials governs how busy and how selective the chart is: Min Strength filters out weak imbalances; Merge Distance (×ATR) sets how aggressively overlapping zones fuse; Max Zones caps the live set; the mitigation rule and filled-history toggle decide how decisively price must close through a level and whether history stays; and the universal-height and flow-bar dimensions tune density. Tighten for a clean, high-conviction map; loosen for full structural context.
🎨 Clean Themed Visuals. A dark institutional palette built around maroon and dark green — the classic imbalance / order-flow color language — colors the zone bands, tier cells, flow bars, badges, labels and dashboard into one coherent look, so class and conviction read at a glance. Every zone, bar and mitigated color is exposed as an input, so you can match the scheme to your chart.
🔔 Alerts. Fires on a new bullish MTF FVG, a new bearish MTF FVG, and any new MTF FVG — formatted for manual or automated use — so you can be pinged when a fresh imbalance forms rather than watching the chart.
🔧 Fully Customizable. Every component is exposed: the three timeframes and direction toggles; the ATR / percent gap filter and ATR length; universal-height mode and size; all six strength weights, the min-strength gate and the relative-volume baseline; merge distance and confluence bonus; the mitigation rule and filled-history tone; every zone, bar and mitigated color; badge, tier-word, flow-bar and stat-label visibility and dimensions; extend length and max zones; and dashboard position and size.
🎯 Why this is different. Most FVG tools draw every three-candle gap as an identical box and leave interpretation to you — a gap that formed on violent one-sided displacement looks exactly like a thin, low-conviction one, and three timeframes worth of gaps stack into an unreadable ladder. This engine reads the order flow behind each gap, scores it 0–10 on six flow-native factors, fuses agreeing timeframes into a single labeled Confluence zone, normalizes every level to one height, re-scores it on development, and neutralizes it the instant it fills — then surfaces the whole multi-timeframe rationale on a live panel. You are looking at classified, ranked, self-invalidating imbalances with the order-flow reasoning attached, not an undifferentiated field of boxes.
🚀 Where to use it. Symbol- and timeframe-agnostic — it runs on forex, indices, metals, crypto and equities across intraday and higher timeframes. Because the score and split use volume, it is sharpest on instruments where volume is meaningful; the range-position delta model is specifically built to keep working on tick-volume instruments like gold and FX, where lower-timeframe intrabar data is unavailable, and it degrades gracefully rather than failing. Keep the chart timeframe at or below your lowest selected zone timeframe for full detail; larger timeframes yield fewer, more significant zones, smaller ones a more reactive map.
🎯 How to trade it. Apply it to a liquid instrument and let the zones and dashboard populate. Read the per-timeframe bias and Flow Pressure for the prevailing order-flow lean, and favor high-strength and Confluence zones — where multiple timeframes and the delta agree — over isolated single-timeframe gaps. Treat each zone as a decision level: plan entries on a controlled retest into the band, define invalidation by the same decisive close-through that neutralizes the zone on the chart, and manage targets against the next opposing zone or your own R model. Use Min Strength, Merge Distance and Max Zones to set chart density — stricter for a clean, high-conviction map, looser for full structure — and use the star score to focus on the cleanest imbalances.
⚠️ Important — this is a decision-support tool, not a standalone buy/sell system, and it makes no performance guarantees. The order-flow read is a volume-delta estimate derived from price geometry — and, on many instruments, from tick volume — not true exchange order flow or bid/ask tape; treat it as a well-behaved approximation, not the book. The 0–10 score is a confluence / cleanliness rank that describes how textbook an imbalance is; it is not a probability or a promise of outcome, and the dashboard is a live read of the engine's current state, not a backtest or forecast. Zones confirm on closed higher-timeframe bars, so they print with the built-in confirmation lag and you should always wait for a settled level. Always pair it with higher-timeframe context, your own analysis, and disciplined risk management, and test it on your market and timeframe before trading it live. Indikator

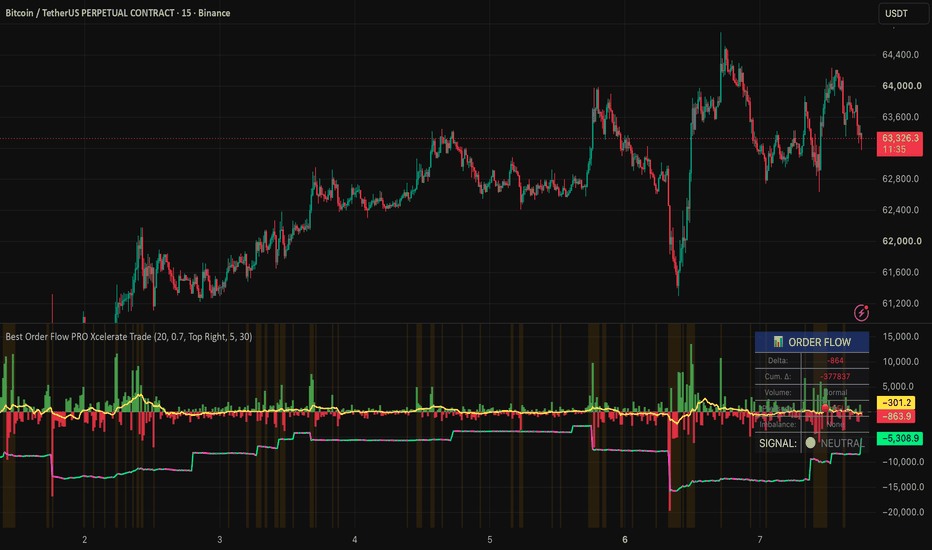

Xcelerate - Order Flow PRO - Delta and ImbalanceORDER FLOW PRO - Volume Delta & Institutional Levels
This indicator brings institutional Order Flow analysis to TradingView,
inspired by professional trading methodologies used by banks, hedge funds,
and institutional traders.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📊 WHAT IS ORDER FLOW?
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Order Flow analysis reveals the real buying and selling pressure behind
price movements. Instead of reacting to price with lagging indicators
(RSI, MACD), you see WHO is in control of the market RIGHT NOW — before
the move happens.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🔥 KEY FEATURES
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📈 VOLUME DELTA HISTOGRAM
- Green bars = Aggressive buying pressure (bullish)
- Red bars = Aggressive selling pressure (bearish)
- Shows who is in control on every single bar
- Smoothed with a configurable Moving Average
📉 CUMULATIVE DELTA
- Running total of buying vs selling pressure
- Rising line = Bulls in control overall
- Falling line = Bears in control overall
- Divergence from price = powerful reversal warning
⚡ STACKED IMBALANCES DETECTION
- Automatically detects 3+ consecutive imbalance bars
- Green signal (▲) = Stacked Buy Imbalance → potential Support
- Red signal (▼) = Stacked Sell Imbalance → potential Resistance
- One of the highest-probability setups in Order Flow trading
⚠️ PRICE-DELTA DIVERGENCE
- Bearish: Price making higher high, Delta making lower high
- Bullish: Price making lower low, Delta making higher low
- Historically one of the most reliable reversal signals
- Automatically marked with warning symbols on chart
📊 LIVE DASHBOARD
- Real-time overview of all key metrics
- Current Delta value
- Cumulative Delta value
- Volume status (Normal / 🔥 HIGH)
- Market Pressure (Buying / Selling / Neutral)
- Imbalance status
- Overall SIGNAL (Bullish / Bearish / Neutral)
🔔 6 BUILT-IN ALERTS
- Stacked Buy Imbalance detected
- Stacked Sell Imbalance detected
- Bearish Divergence detected
- Bullish Divergence detected
- Extreme Buying Pressure
- Extreme Selling Pressure
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🎯 HOW TO USE
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
1. VOLUME DELTA — Monitor the histogram:
• Consistent green bars = bullish bias
• Consistent red bars = bearish bias
• Watch for sudden spikes = institutional activity
2. CUMULATIVE DELTA — Watch the line:
• Trending up while price trends up = strong trend
• Diverging from price = potential reversal
3. STACKED IMBALANCES — Best trade setups:
• Mark the zone when signal appears
• Wait for price to pull back to that zone
• Enter in the direction of the original imbalance
• Place SL just beyond the zone
4. DIVERGENCE — Reversal signals:
• Look for divergence warnings near S/R levels
• Strongest when combined with high volume
• Confirm with a price action candle
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚙️ RECOMMENDED SETTINGS
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
- Timeframes: 5m, 15m, 30m (best for day trading)
- Delta MA Period: 20 (default) — increase for smoother signal
- Imbalance Threshold: 0.7 (default) — lower = more signals
- Combine with: Volume Profile, Support/Resistance, Price Action
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📌 BEST INSTRUMENTS
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
✅ Forex pairs (EUR/USD, GBP/USD, etc.)
✅ Crypto (BTC/USD, ETH/USD, SOL/USD)
✅ Indices (SPX, NAS100, DAX)
✅ Commodities (Gold, Oil)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚠️ IMPORTANT NOTES
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
- TradingView does not provide true Bid/Ask data for most instruments
- Volume Delta is estimated based on bar structure (close vs open)
- For true institutional Order Flow, use NinjaTrader 8 with Futures data
- This indicator works best as a CONFLUENCE tool — always combine
with proper price action analysis and risk management
- Past signals do not guarantee future results
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
💡 PRO TIPS
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
→ Trade Stacked Imbalances at key S/R levels for highest probability
→ Use Cumulative Delta to confirm trend direction before entering
→ Pay attention to HIGH volume bars — institutions are active
→ Always wait for the FIRST touch of a level (don't re-trade same zone)
→ Use a minimum 2:1 Risk:Reward on every trade
→ Set alerts so you never miss a signal
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📚 METHODOLOGY
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
This indicator is based on institutional Order Flow trading principles,
including concepts from professional futures and forex trading:
- Volume Delta analysis (Aggressive Buyers vs Sellers)
- Imbalance detection (one-sided market domination)
- Cumulative Delta divergence (weakening momentum)
- High Volume Node identification (institutional activity zones)
These concepts are used by professional traders on platforms like
NinjaTrader and Sierra Chart with real Bid/Ask Futures data. This
indicator adapts those principles for TradingView using estimated
volume data.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚠️ RISK DISCLAIMER
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
This indicator is for educational purposes only. Trading financial
markets involves substantial risk of loss. Never risk more than you
can afford to lose. Always use proper risk management. Past performance
is not indicative of future results.
If you find this indicator useful, please leave a comment or a ⭐ —
it helps others discover it and motivates further development!
Good luck and trade safe! 🚀
Feb 17
Release Notes
🚀 ORDER FLOW PRO - Volume Delta & Institutional Levels
This indicator brings institutional Order Flow analysis to TradingView,
inspired by professional trading methodologies used by banks, hedge funds,
and institutional traders.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📊 WHAT IS ORDER FLOW?
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Order Flow analysis reveals the real buying and selling pressure behind
price movements. Instead of reacting to price with lagging indicators
(RSI, MACD), you see WHO is in control of the market RIGHT NOW — before
the move happens.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🔥 KEY FEATURES
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📈 VOLUME DELTA HISTOGRAM
- Green bars = Aggressive buying pressure (bullish)
- Red bars = Aggressive selling pressure (bearish)
- Shows who is in control on every single bar
- Smoothed with a configurable Moving Average
📉 CUMULATIVE DELTA
- Running total of buying vs selling pressure
- Rising line = Bulls in control overall
- Falling line = Bears in control overall
- Divergence from price = powerful reversal warning
⚡ STACKED IMBALANCES DETECTION
- Automatically detects 3+ consecutive imbalance bars
- Green signal (▲) = Stacked Buy Imbalance → potential Support
- Red signal (▼) = Stacked Sell Imbalance → potential Resistance
- One of the highest-probability setups in Order Flow trading
⚠️ PRICE-DELTA DIVERGENCE
- Bearish: Price making higher high, Delta making lower high
- Bullish: Price making lower low, Delta making higher low
- Historically one of the most reliable reversal signals
- Automatically marked with warning symbols on chart
📊 LIVE DASHBOARD
- Real-time overview of all key metrics
- Current Delta value
- Cumulative Delta value
- Volume status (Normal / 🔥 HIGH)
- Market Pressure (Buying / Selling / Neutral)
- Imbalance status
- Overall SIGNAL (Bullish / Bearish / Neutral)
🔔 6 BUILT-IN ALERTS
- Stacked Buy Imbalance detected
- Stacked Sell Imbalance detected
- Bearish Divergence detected
- Bullish Divergence detected
- Extreme Buying Pressure
- Extreme Selling Pressure
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🎯 HOW TO USE
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
1. VOLUME DELTA — Monitor the histogram:
• Consistent green bars = bullish bias
• Consistent red bars = bearish bias
• Watch for sudden spikes = institutional activity
2. CUMULATIVE DELTA — Watch the line:
• Trending up while price trends up = strong trend
• Diverging from price = potential reversal
3. STACKED IMBALANCES — Best trade setups:
• Mark the zone when signal appears
• Wait for price to pull back to that zone
• Enter in the direction of the original imbalance
• Place SL just beyond the zone
4. DIVERGENCE — Reversal signals:
• Look for divergence warnings near S/R levels
• Strongest when combined with high volume
• Confirm with a price action candle
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚙️ RECOMMENDED SETTINGS
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
- Timeframes: 5m, 15m, 30m (best for day trading)
- Delta MA Period: 20 (default) — increase for smoother signal
- Imbalance Threshold: 0.7 (default) — lower = more signals
- Combine with: Volume Profile, Support/Resistance, Price Action
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📌 BEST INSTRUMENTS
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
✅ Forex pairs (EUR/USD, GBP/USD, etc.)
✅ Crypto (BTC/USD, ETH/USD, SOL/USD)
✅ Indices (SPX, NAS100, DAX)
✅ Commodities (Gold, Oil)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚠️ IMPORTANT NOTES
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
- TradingView does not provide true Bid/Ask data for most instruments
- Volume Delta is estimated based on bar structure (close vs open)
- For true institutional Order Flow, use NinjaTrader 8 with Futures data
- This indicator works best as a CONFLUENCE tool — always combine
with proper price action analysis and risk management
- Past signals do not guarantee future results
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
💡 PRO TIPS
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
→ Trade Stacked Imbalances at key S/R levels for highest probability
→ Use Cumulative Delta to confirm trend direction before entering
→ Pay attention to HIGH volume bars — institutions are active
→ Always wait for the FIRST touch of a level (don't re-trade same zone)
→ Use a minimum 2:1 Risk:Reward on every trade
→ Set alerts so you never miss a signal
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📚 METHODOLOGY
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
This indicator is based on institutional Order Flow trading principles,
including concepts from professional futures and forex trading:
- Volume Delta analysis (Aggressive Buyers vs Sellers)
- Imbalance detection (one-sided market domination)
- Cumulative Delta divergence (weakening momentum)
- High Volume Node identification (institutional activity zones)
These concepts are used by professional traders on platforms like
NinjaTrader and Sierra Chart with real Bid/Ask Futures data. This
indicator adapts those principles for TradingView using estimated
volume data.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚠️ RISK DISCLAIMER
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
This indicator is for educational purposes only. Trading financial
markets involves substantial risk of loss. Never risk more than you
can afford to lose. Always use proper risk management. Past performance
is not indicative of future results.
If you find this indicator useful, please leave a comment or a ⭐ —
it helps others discover it and motivates further development!
Good luck and trade safe! 🚀
Feb 17
Release Notes
🚀 ORDER FLOW PRO - Volume Delta & Institutional Levels
This indicator brings institutional Order Flow analysis to TradingView,
inspired by professional trading methodologies used by banks, hedge funds,
and institutional traders.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📊 WHAT IS ORDER FLOW?
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Order Flow analysis reveals the real buying and selling pressure behind
price movements. Instead of reacting to price with lagging indicators
(RSI, MACD), you see WHO is in control of the market RIGHT NOW — before
the move happens.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🔥 KEY FEATURES
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📈 VOLUME DELTA HISTOGRAM
- Green bars = Aggressive buying pressure (bullish)
- Red bars = Aggressive selling pressure (bearish)
- Shows who is in control on every single bar
- Smoothed with a configurable Moving Average
📉 CUMULATIVE DELTA
- Running total of buying vs selling pressure
- Rising line = Bulls in control overall
- Falling line = Bears in control overall
- Divergence from price = powerful reversal warning
⚡ STACKED IMBALANCES DETECTION
- Automatically detects 3+ consecutive imbalance bars
- Green signal (▲) = Stacked Buy Imbalance → potential Support
- Red signal (▼) = Stacked Sell Imbalance → potential Resistance
- One of the highest-probability setups in Order Flow trading
⚠️ PRICE-DELTA DIVERGENCE
- Bearish: Price making higher high, Delta making lower high
- Bullish: Price making lower low, Delta making higher low
- Historically one of the most reliable reversal signals
- Automatically marked with warning symbols on chart
📊 LIVE DASHBOARD
- Real-time overview of all key metrics
- Current Delta value
- Cumulative Delta value
- Volume status (Normal / 🔥 HIGH)
- Market Pressure (Buying / Selling / Neutral)
- Imbalance status
- Overall SIGNAL (Bullish / Bearish / Neutral)
🔔 6 BUILT-IN ALERTS
- Stacked Buy Imbalance detected
- Stacked Sell Imbalance detected
- Bearish Divergence detected
- Bullish Divergence detected
- Extreme Buying Pressure
- Extreme Selling Pressure
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🎯 HOW TO USE
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
1. VOLUME DELTA — Monitor the histogram:
• Consistent green bars = bullish bias
• Consistent red bars = bearish bias
• Watch for sudden spikes = institutional activity
2. CUMULATIVE DELTA — Watch the line:
• Trending up while price trends up = strong trend
• Diverging from price = potential reversal
3. STACKED IMBALANCES — Best trade setups:
• Mark the zone when signal appears
• Wait for price to pull back to that zone
• Enter in the direction of the original imbalance
• Place SL just beyond the zone
4. DIVERGENCE — Reversal signals:
• Look for divergence warnings near S/R levels
• Strongest when combined with high volume
• Confirm with a price action candle
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚙️ RECOMMENDED SETTINGS
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
- Timeframes: 5m, 15m, 30m (best for day trading)
- Delta MA Period: 20 (default) — increase for smoother signal
- Imbalance Threshold: 0.7 (default) — lower = more signals
- Combine with: Volume Profile, Support/Resistance, Price Action
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📌 BEST INSTRUMENTS
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
✅ Forex pairs (EUR/USD, GBP/USD, etc.)
✅ Crypto (BTC/USD, ETH/USD, SOL/USD)
✅ Indices (SPX, NAS100, DAX)
✅ Commodities (Gold, Oil)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚠️ IMPORTANT NOTES
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
- TradingView does not provide true Bid/Ask data for most instruments
- Volume Delta is estimated based on bar structure (close vs open)
- For true institutional Order Flow, use NinjaTrader 8 with Futures data
- This indicator works best as a CONFLUENCE tool — always combine
with proper price action analysis and risk management
- Past signals do not guarantee future results
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
💡 PRO TIPS
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
→ Trade Stacked Imbalances at key S/R levels for highest probability
→ Use Cumulative Delta to confirm trend direction before entering
→ Pay attention to HIGH volume bars — institutions are active
→ Always wait for the FIRST touch of a level (don't re-trade same zone)
→ Use a minimum 2:1 Risk:Reward on every trade
→ Set alerts so you never miss a signal
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📚 METHODOLOGY
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
This indicator is based on institutional Order Flow trading principles,
including concepts from professional futures and forex trading:
- Volume Delta analysis (Aggressive Buyers vs Sellers)
- Imbalance detection (one-sided market domination)
- Cumulative Delta divergence (weakening momentum)
- High Volume Node identification (institutional activity zones)
These concepts are used by professional traders on platforms like
NinjaTrader and Sierra Chart with real Bid/Ask Futures data. This
indicator adapts those principles for TradingView using estimated
volume data.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚠️ RISK DISCLAIMER
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
This indicator is for educational purposes only. Trading financial
markets involves substantial risk of loss. Never risk more than you
can afford to lose. Always use proper risk management. Past performance
is not indicative of future results.
If you find this indicator useful, please leave a comment or a ⭐ —
it helps others discover it and motivates further development!
Good luck and trade safe! 🚀
Mar 9
Release Notes
ORDER FLOW PRO — Volume Delta & Imbalance Analysis | Xcelerate Trade
Overview
Order Flow Pro is a volume-pressure analysis framework designed to visualize directional activity within individual bars and across broader market swings.
It examines the relationship between price expansion and underlying volume-derived pressure, helping traders assess whether movement is supported by participation or developing under weakening internal conditions.
The objective is structural clarity, not prediction.
Methodology
TradingView does not provide true bid/ask transaction data for most instruments. Delta is therefore estimated using volume and bar-structure logic.
The script applies rule-based calculations to:
• Estimate per-bar directional delta
• Aggregate cumulative delta over time
• Detect sustained imbalance conditions using configurable thresholds
• Compare structural price swings with cumulative delta swings
• Classify pressure state using internally defined conditions
All outputs are derived directly from available market data.
Key Features
• Volume Delta Histogram
Displays estimated buying and selling pressure per bar to evaluate participation intensity.
• Cumulative Delta
Tracks whether pressure is expanding, stabilizing, or diverging relative to price movement.
• Stacked Imbalance Detection
Identifies clusters of consecutive directional pressure exceeding a defined threshold.
• Price–Delta Divergence
Highlights structural disagreement between price movement and cumulative pressure.
• Integrated Dashboard
Provides real-time visibility of delta state, cumulative bias, imbalance status, and pressure classification.
• Configurable Alerts
Available for imbalance clusters and divergence conditions.
Practical Application
Order Flow Pro functions as a contextual layer within a structured analytical process.
It may assist in:
• Evaluating whether breakouts are supported by expanding participation
• Assessing the internal strength of ongoing trends
• Identifying areas where directional pressure has concentrated
• Observing potential momentum compression when price extends without corresponding delta expansion
Outputs should be interpreted alongside market structure, volatility conditions, and independent risk management rules.
Recommended Settings
Common intraday configurations:
• Timeframes: 5m, 15m, 30m
• Delta MA Period: 20 (adjustable for smoothing preference)
• Imbalance Threshold: configurable based on instrument volatility
Settings may be adapted to instrument characteristics and trading style.
Applicable Markets
Designed for use on:
• Major Forex pairs
• Crypto pairs
• Equity indices
• Commodities
Behavior varies depending on liquidity profile and volume structure.
Limitations
• Delta values are estimated due to platform data constraints.
• Results may differ from platforms using exchange-level bid/ask feeds.
• Imbalance and divergence represent structural conditions, not forecasts or trade instructions.
• Market regime and timeframe materially influence interpretation.
Developed by Xcelerate Trade — professional-grade tools designed for disciplined market structure workflows. Indikator
Absorption Zones + Hold-Rate StatsAbsorption Zones + Hold-Rate Stats
WHAT THIS PUBLICATION ADDS
Most volume tools show you WHERE unusual activity happened. This script does
two things beyond that, and the second one is the reason it exists:
1. It detects ABSORPTION - bars where one side hits the market aggressively
(measured with real intrabar up/down volume from a lower timeframe), yet
price refuses to move, which is the classic footprint of large passive
orders defending a level - and turns each event into a zone.
2. It then tracks every zone FORWARD and reports the outcome statistics on
your exact symbol and timeframe: how many zones were retested, how often
a retest actually held, how long the first test took, and the median
reaction size in ATR. The indicator audits itself instead of asking you
to trust its drawings. To my knowledge, self-measured hold-rate reporting
for absorption zones is not available in existing public scripts.
HOW ABSORPTION IS DETECTED
- Intrabar delta: each chart bar is split into lower-timeframe bars
(auto: 60min on D+, 15min on 4H+, 5min on 1H+, 1min below; manual override
available). Volume of rising intrabars counts as buying, falling as selling;
their difference is the bar's delta. Where intrabar history is not
available, a close-location estimate is used and the table reports the real
intrabar coverage so you always know the data quality.
- Two detection models, selectable:
a) Delta absorption: bar volume above the Nth percentile of the lookback
window (default 80th of 200 bars), |delta|/volume above a minimum share
(default 0.12), and the close positioned AGAINST the aggression - heavy
selling that closes in the top of the bar means someone absorbed it
(bullish), and vice versa.
b) Effort vs result: volume above the percentile threshold while the bar
range ranks BELOW its percentile cap (default 50th) - huge effort, no
result - with the close direction defining the side.
- Each zone gets a transparency-scored grade (A/B/C) built from volume
percentile (35%), delta share (30%), close position (20%) and
effort-vs-result compression (15%). The label tooltip shows every component.
- The zone box spans the part of the bar where the passive orders acted:
from the low up to a configurable fraction of the range for bullish zones,
mirrored for bearish.
HOW OUTCOMES ARE MEASURED
- A zone is TESTED when price returns into it on a later bar.
- It counts as HELD if, after the first test, price moves the configured
number of ATR (default 1.5, ATR measured at test time) away from the zone
edge before the zone breaks; it is BROKEN when price closes (or wicks,
selectable) through the far edge. If neither happens within the resolve
window (default 40 bars), the zone is resolved by whether the target was
reached. Same-bar conflicts are resolved as BROKEN, so the reported
hold-rate is conservative.
- Untested zones older than the age limit expire and are excluded, so
statistics only describe zones that price actually revisited.
- The table reports, separately for bullish and bearish zones: zones formed,
tested share, hold-rate with sample size, median bars to first test, and
median reaction in ATR multiples.
HOW TO USE
- Treat active zones as locations where large passive interest was proven,
not as automatic signals. The retest of a fresh A-grade zone is the event
worth your attention; the marker and alerts fire exactly there.
- Read the table first: if the hold-rate on your symbol/timeframe is near a
coin flip or the sample is small, lower the sensitivity (raise the volume
percentile, raise the min delta share) or move to a higher timeframe.
- The zone edge and the sweep low/high give natural invalidation levels.
- Six alerts are available: new bullish/bearish zone, bullish/bearish zone
retest, bullish/bearish zone break.
SETTINGS GUIDE
- Percentile lookback 200 / volume threshold 80 work on most liquid markets.
For quiet instruments lower the threshold to 70; for very active ones
raise it to 90 to keep only exceptional bars.
- Zone width 0.5 matches "the half of the bar where the fight happened";
0.25-0.35 gives tighter, stricter zones.
- Hold target 1.5 ATR suits intraday; swing traders may prefer 2-3 ATR with
a longer resolve window.
LIMITATIONS - READ BEFORE USING
- Intrabar delta is an approximation built from lower-timeframe bars, not
exchange tick data. The coverage row in the table shows exactly what share
of bars used real intrabar data.
- Detection runs on confirmed bars only, so zones and events do not repaint;
the cost is that everything appears at bar close, never mid-bar.
- The hold-rate is descriptive statistics of the loaded chart history, not a
forecast. Past zone behaviour does not guarantee future results. This is a
decision-support tool, not a signal service.
Open-source under MPL 2.0 - study, fork and improve it freely. Indikator
Cumulative Rejection Heatmap [MarkitTick]💡 This advanced visual analytics tool is designed to track, aggregate, and display price rejection zones over a rolling historical window. By focusing entirely on market wicks—the footprints of supply and demand absorption—this script constructs a dynamic heatmap that highlights where price has repeatedly struggled to close. Instead of simply looking at volume or closing prices, it isolates the exact microscopic levels where buyers and sellers have historically stepped in to reverse the momentum, providing a crystal-clear map of underlying market mechanics.
● ✨ Originality and Utility
Traditional technical analysis often relies on closing prices or volume-at-price concepts like the Volume Profile. While valuable, these standard tools can sometimes obscure the specific price extremes where true order absorption occurs. This tool takes an entirely original approach by creating a "Rejection Profile."
It systematically scans every single bar within a defined historical window, mathematically measures the length of the upper and lower wicks, and compares them against the total range of the bar. When a wick meets a stringent, user-defined threshold, it is classified as a valid rejection. Over time, these individual rejection events are accumulated into specific price bins, forming a dense, visual heatmap.
The utility here is unparalleled for traders who rely on price action and liquidity concepts. By rendering a visual concentration of wicks, the chart immediately reveals hidden support and resistance walls that might not be evident through standard line-drawing techniques. It removes subjectivity from the process, mathematically proving where the market is consistently refusing to allow price to travel.
● 🔬 Methodology and Concepts
The core engine of this script relies on a rolling matrix computation combined with strict volatility filtering. The methodology can be broken down into several distinct logical phases:
Volatility Filtering: Before any rejection is considered, the script measures the current bar's true range against a fraction of the Average True Range (ATR). If the bar's range is too small, it is deemed market noise or chop, and is entirely ignored. This prevents tight, low-volatility consolidation from falsely inflating the rejection heatmap.
Wick Ratio Calculation: For valid bars, the script calculates the exact length of the upper wick (High minus the maximum of Open/Close) and the lower wick (minimum of Open/Close minus Low). This value is divided by the total bar range. If this ratio exceeds the minimum wick ratio threshold, a rejection event is triggered.
Price Discretization (Binning): The script continuously tracks the highest high and lowest low of the entire lookback window. It divides this total vertical price space into a user-defined number of equal-sized bins.
Rolling Matrix Accumulation: Using an advanced matrix data structure, the script logs each rejection event into its corresponding price bin. As the lookback window rolls forward in time, the oldest data is systematically overwritten by the newest data. This ensures the heatmap is constantly adapting to current market conditions without retaining stale historical data that is no longer relevant.
● 🎨 Visual Guide
The script overlays multiple layers of visual intelligence directly onto the main price chart, designed to be quickly readable without cluttering the workspace.
• The Rejection Heatmap
Projected forward from current price action, a series of horizontal boxes forms the heatmap. The vertical height of each box represents a specific price bin, while the color intensity indicates the density of rejections within that bin. Colors transition dynamically using a custom gradient. Areas with little to no rejection remain dark and transparent, while areas of extreme rejection light up in high-contrast neon tones. Each box contains a subtle text label displaying the exact number of rejection hits and its percentage relative to the most rejected level.
• Support and Resistance (S/R) Lines
The script automatically identifies the top bins with the absolute highest concentration of historical rejections. It projects dashed horizontal lines across the chart at the exact center of these bins. These lines act as major, mathematically validated support and resistance levels, highlighted in a distinct, user-defined border color.
• Directional Triangles
When an immediate price rejection occurs on the live chart, a small geometric shape is printed to alert the user:
A downward-pointing triangle above the bar indicates a significant upper wick rejection, signaling sudden selling pressure or supply absorption.
An upward-pointing triangle below the bar indicates a significant lower wick rejection, signaling sudden buying pressure or demand absorption.
• The Analytics Dashboard
A sleek, customizable table is anchored to a corner of the chart, providing a heads-up display of the current market state. It displays the active asset, the rolling window size, the current ATR, and the exact price level of the highest rejection density. Furthermore, it features a text-based ASCII progress bar showing the peak density relative to historical maximums, and a Bull/Bear Bias metric that calculates the exact ratio of upward versus downward rejections over the entire window.
● 📖 How to Use
Traders can integrate this visual framework into a variety of market approaches, primarily focusing on mean reversion, breakout confirmation, and precise risk management.
Identifying Liquidity Pools: The brightest zones on the heatmap represent areas where limit orders have historically absorbed market orders. Traders can use these glowing zones as highly probable target areas for taking profits, as price tends to gravitate toward and stall at heavy liquidity.
Validating Breakouts: If price breaks cleanly through a bright red, high-density rejection zone and closes beyond it, it indicates a significant shift in market structure. A zone that previously acted as a ceiling (supply) may now act as a floor (demand) upon a retest.
Stop Loss Placement: The automated S/R lines and high-density bins provide logical areas for stop-loss placement. Placing a stop just outside a heavy rejection bin ensures that the trade is only invalidated if the market successfully chews through a known area of heavy opposition.
Real-Time Execution: The live directional triangles can be used as immediate trigger signals when they align with the broader heatmap context. For example, an upward-pointing triangle printing exactly as price dips into a historically dense lower rejection bin provides a high-probability entry for a long position.
● ⚙️ Inputs and Settings
The script is highly customizable, allowing the user to tailor the mathematical sensitivity and visual output to their specific asset and timeframe.
• Heatmap Configuration
Window: The rolling lookback period. A larger window encompasses more macro price action, while a shorter window reacts faster to recent volatility.
Bins: Determines the vertical resolution. More bins create thinner, more granular price slices; fewer bins create wider, more generalized zones.
Min Wick Ratio: The strictness of the rejection criteria. A higher value (e.g., 0.60) requires the wick to make up at least 60% of the entire bar, filtering out weak signals.
Min Range (xATR): Filters out low-volatility bars to prevent tight consolidation from skewing the data.
Heatmap Width %: Controls how far the visual heatmap projects into the future on the right side of the chart.
• Dashboard and Visuals
Dashboard Pos: Anchors the analytics table to any corner of the chart to prevent obstruction of price action.
Top S/R Levels: Determines how many distinct dashed support/resistance lines are drawn based on the highest-ranking bins.
Use Neon Gradient: Toggles the dynamic color shading of the heatmap boxes.
• Alerts Configuration
Action Long / Action Short: Custom JSON string inputs that allow the user to format specific payloads for automated trading platforms or webhooks when a live rejection triangle prints.
● 🔍 Deconstruction of the Underlying Scientific and Academic Framework
At its academic core, this tool is heavily rooted in Auction Market Theory and the statistical discretization of continuous price variables. Auction Market Theory posits that financial markets exist solely to facilitate trade between buyers and sellers, constantly probing upward and downward to find areas of liquidity (fair value). When price extends too far and encounters a massive wall of limit orders, aggressive market orders are absorbed, and price is rapidly driven back in the opposite direction. On a candlestick chart, this aggressive absorption is permanently recorded as a wick.
By systematically isolating wicks, this script is effectively reconstructing the historical limit order book imbalance. It moves away from the continuous nature of time-series data and utilizes statistical binning—a process of dividing a continuous numerical range into discrete, non-overlapping intervals (bins). This is mathematically analogous to constructing a multidimensional probability density histogram.
The underlying matrix acts as a Markovian state tracker, where the probability of future price rejection at a specific interval is inferred from the historical density of prior absorptions within that exact same interval. The application of the Average True Range (ATR) as a high-pass volatility filter ensures that the statistical sample is robust, eliminating low-amplitude noise and focusing the mathematical weight strictly on statistically significant standard deviation expansions.
⚠️ Disclaimer
All provided scripts and indicators are strictly for educational exploration and must not be interpreted as financial advice or a recommendation to execute trades. We expressly disclaim all liability for any financial losses or damages that may result, directly or indirectly, from the reliance on or application of these tools. Market participation carries inherent risk where past performance never guarantees future returns, leaving all investment decisions and due diligence solely at your own discretion. Indikator
CVD Pressure Aura [Weather HUD]Order flow rendered as living weather around the price — an immersive perception tool, not a signal generator.
CVD Pressure Aura turns cumulative volume delta into a living atmospheric heads-up display that surrounds your candles like weather around a glass pane.
Instead of staring at abstract bars in a separate pane, you now feel the pressure regime directly on the chart: buying pressure pushing up from below as a glowing green aura, selling pressure pouring down from above as a red flood. The market’s breathing, compression, and exhaustion become visible at a glance.
How to Read It
A smooth envelope (default: Bollinger 20 SMA ± 2σ, now with optional smoothed Keltner channel) acts as the “glass.” All order flow lives outside it — the candles stay clean and readable at all times.
🌱 Green aura below — buying pressure rising from beneath. Taller and brighter = stronger, more persistent demand.
🌧 Red flood above — selling pressure pouring down. Same logic, mirrored.
The Aura Breathes
A slow SMA (200 default) drives the regime engine:
Compression — When volatility squeezes, cyan clamps close in from above and below, tightening the coil. You can literally watch the market rally straight into a pressure zone and feel the crowd standing at that level.
Exhaustion — When price stretches far from the slow SMA, the opposing aura swells (gravity above an over-extended rally, spring loading beneath an over-extended sell-off). ⚡ marks full stretch.
Symbols (full weather legend available on-chart)
🡑 / 🡓 — strong one-sided flow this bar (sparks / rain)
☀ / ☂ — extreme flow, top 10% of lookback (thermal / storm)
⚡ — full exhaustion (maximally stretched from slow SMA)
▼ cyan — full coil (tightest squeeze of the lookback)
✦ orange (above) — bearish divergence: new price high, CVD refuses to follow
✦ cyan (below) — bullish divergence: new price low, CVD refuses to follow
Key Features
New: Smoothed Keltner Channel option for a cleaner, more adaptive glass pane
Cyan compression clamps that visually tighten during squeezes
Overdrive slider (0–100) for full immersion
Rolling regime engine with breathing mechanics
Works on any timeframe and symbol with volume
This is a perception instrument, engineered to make order flow feelable rather than merely measurable. Nothing here is financial advice — it exists to help you develop an intuitive sense of market pressure.
Engineered with Claude (Anthropic). Feedback and ideas for future iterations are very welcome.
Release notes (v1.2)
NEW: Keltner Channel envelope mode (SMA or EMA basis ± ATR) — the smoothest glass
NEW: Cyan compression clamps replace the coil glyph — squeeze pressure now presses visibly on the envelope from both sides, readable at any zoom level
NEW: State-colored moving averages — slow SMA by slope, basis by regime (cyan coil / green bull / red bear / gray indecision)
On-chart weather legend, default bottom-left (clear of the TradingView symbol overlay)
Plot budget optimized to fit the 64-plot engine limit
Indikator
Footprint Master Pane [ZynAlgo]Overview
ZynAlgo Footprint Master Pane is an order-flow and footprint-style volume analysis indicator designed to help traders study micro-liquidity behavior inside each candlestick.
The tool displays intrabar volume-side activity as a matrix-style Footprint Profile in a separate pane. Instead of only observing open, high, low, and close movement, traders can study where buying and selling pressure appears across different price levels inside recent candles.
This can help users evaluate:
Intrabar volume concentration
Buy-side and sell-side pressure
Delta behavior inside each candle
Point of Control placement
Liquidity concentration at candle highs and lows
Potential absorption or exhaustion behavior
Chart example:
How to Read the Footprint Matrix
Each data block on the chart is displayed in this format:
Bid | Ask
Price Level
The price level represented by that row of the footprint matrix.
Bid - Left Number
Represents sell-side volume activity classified by the script for that price level.
Ask - Right Number
Represents buy-side volume activity classified by the script for that price level.
Background Color - Heatmap
The higher the volume at a price level, the stronger the heatmap intensity.
Default color logic:
Cyan: buy-side activity is dominant at that price level.
Pink: sell-side activity is dominant at that price level.
Gray: low or inactive liquidity area.
Key Highlights
POC - Point of Control
The Point of Control is the price level with the highest total trading volume within the selected candlestick.
It is displayed as the gold zone and represents the main volume concentration area for that candle.
Footer Metrics
The bottom of each footprint column displays summary data for the candle.
Delta
Delta represents the net difference between buy-side and sell-side volume activity.
A positive delta indicates that buy-side pressure is dominant. A negative delta indicates that sell-side pressure is dominant.
Total Volume
Total volume represents the combined volume activity for the entire candlestick.
Configuration Settings
1. Order Flow Engine
Intrabar Timeframe
Defines the lower timeframe used by the tool to extract intrabar volume information.
Lower intrabar timeframes can provide more detailed footprint construction, while higher intrabar timeframes may produce a smoother and lighter display.
Stack Levels - Height
Controls how many price levels each candlestick is divided into.
Higher values:
Show more footprint detail
Create a finer price-level breakdown
May increase chart processing load
Lower values:
Create a simpler footprint view
Reduce visual density
May run more smoothly on slower charts
Auto Detect Asset - Smart Grid
When enabled, the system attempts to measure the current asset's volatility and calculate an appropriate grid size automatically.
This is useful when switching between markets such as gold, crypto, forex, indices, or stocks.
Manual Tick Size
When Auto Detect Asset is disabled, users can manually define the tick or grid size.
This can be useful when a symbol requires a custom footprint scale.
2. Pane Visuals
Recent Bars to Render
Controls how many recent candles are displayed in detailed footprint form.
Limiting the number of rendered candles can help keep the chart responsive on TradingView.
Color Customization
Users can customize the colors for:
Buy-side activity
Sell-side activity
Point of Control zone
Heatmap display
This allows the footprint pane to match different chart themes and visual preferences.
Basic Analytical Applications
1. Absorption Observation
When price approaches a key support or resistance area, footprint data can help traders study whether one side of the market is being absorbed.
For example, if a bearish candle shows positive delta and large volume near the lower part of the candle, it may suggest that sell pressure is being absorbed by buy-side participation.
2. POC Migration
Point of Control migration can help traders evaluate where value is shifting across consecutive candles.
In an uptrend, POC zones that continue to migrate higher may suggest that market participation is accepting higher prices.
3. Liquidity at Highs and Lows
Traders can inspect volume activity near candle highs and lows to study exhaustion behavior.
For example, if price reaches a new high but the top levels show very low participation, that may indicate weaker continuation pressure.
How to Use
Add the indicator to the chart.
Choose an intrabar timeframe suitable for the chart timeframe and market.
Adjust stack levels to control footprint detail.
Use the heatmap to identify price levels with stronger participation.
Monitor the POC to study where volume concentration forms inside each candle.
Compare delta and total volume to evaluate buy-side or sell-side pressure.
Combine footprint observations with market structure, support and resistance, liquidity zones, and risk planning.
Best Use Cases
This indicator may be useful for:
Order-flow style analysis
Footprint chart reading
Intrabar volume analysis
Delta observation
Point of Control tracking
Absorption study
Exhaustion analysis
Liquidity-zone confirmation
Limitations
Footprint values depend on the intrabar data available from TradingView for the selected symbol and timeframe.
The Bid and Ask display is based on the script's volume-side classification logic and should be interpreted as analytical volume-side data.
Lower intrabar timeframes may provide more detail but can increase processing load.
A footprint imbalance does not guarantee price continuation or reversal.
The indicator does not provide automatic trade entries, exits, or position management.
Past order-flow or footprint behavior does not guarantee future results.
Important Note
This indicator is an analysis tool only. It does not provide financial advice, investment advice, or guaranteed trading results. Users are responsible for their own trading decisions and risk management.
Indikator
Indikator
Adaptive Predictability Engine Entropy Gate, Regime RouterAdaptive Predictability Engine — Entropy Gate, Regime Router & Expert Committee
What it is
The Adaptive Predictability Engine is a governed decision framework, not another confluence average. It refuses to treat all market conditions as tradable. It applies a strict hierarchy: first it asks whether price is forecastable at all right now; if it is, it decides whether trend-style or reversion-style logic is appropriate; and only then does a small committee of transparent experts vote — with the committee continuously re-weighting itself toward whichever experts have been correct recently. When the market is unpredictable, the whole engine stands aside and shows nothing to trade.
It plots directly on price: long/short signals, the live entry/target/stop of the active trade, a plain-language dashboard, and an optional self-calibration panel that scores past signals in R-multiple expectancy (not just win rate).
Why these components are combined (mashup justification)
This is a deliberate, dependent stack — each layer conditions the next, so removing any one changes the layer below it. That is the difference between a governed engine and a bag of averaged indicators.
Predictability gate (permutation entropy + structure). Permutation entropy (Bandt–Pompe) measures the ordinal randomness of recent price across three time scales; this is blended with |Hurst − 0.5|, the distance of the market from a random walk, which is high for strong trends and strong mean-reversion. The blended predictability is percentile-ranked so the gate self-tunes per symbol and timeframe. If the tape is unpredictable, nothing downstream may fire. This is the master switch, and it is why the engine spends much of its time deliberately doing nothing.
Regime router (Hurst exponent). When structure exists, the Hurst exponent (generalized, via a structure-function slope) decides whether it is persistent (trend) or anti-persistent (mean-revert), and routes weight toward the appropriate family of experts rather than averaging trend and reversion logic together.
Expert committee (Hedge / multiplicative weights). Six deliberately diverse experts — price trend, volume-weighted price, order-flow delta, momentum exhaustion, volatility extreme, and range extreme — each cast a directional vote. Their weights update every bar by exponential regret (right experts gain influence, wrong ones lose it), with fixed-share regularization so no single expert can dominate and make the vote fragile.
Distribution-shift guard. If the recent return distribution moves materially versus a reference window, the engine freezes learning and cuts conviction until conditions settle, so stale weights don't drive trades through a regime change.
The output is a single decision = the regret-weighted vote of only the currently-appropriate experts, gated to zero whenever the tape is unpredictable.
How to use it
Add it to any liquid symbol and timeframe. Defaults are tuned for index futures (e.g. NIFTY) but every input is adjustable, and the Data source group lets you repoint price and volume for any market.
Watch the dashboard headline: LONG / SHORT / WAIT / STAND ASIDE. When a signal fires, the engine draws the entry, ATR target, and ATR stop so the action is concrete.
Treat the shaded background as a hard "do not trade" — the engine has judged the tape unpredictable.
Open the Edge calibration (advanced) panel to see, per market memory, the past R-expectancy of the engine's own signals versus a direction-matched baseline. Positive expectancy means the sample was profitable before costs; this is descriptive of the past, not a forward guarantee.
Use the Ablation (research) toggles to switch each layer off and see, on your own data, whether it earns its place.
What makes it original
Most published tools average indicators and hope. This one inverts the approach by asking whether to act at all before what to do, using information-theoretic predictability (permutation entropy) as a master gate, a memory estimate (Hurst) as a router, and online regret-minimization (Hedge) to arbitrate a diverse expert set — with built-in R-expectancy self-calibration so users can judge it honestly rather than on a cherry-picked screenshot. The order-flow expert reads finest-available lower-timeframe signed volume with automatic fallback. The coupling and governance order are the contribution; the individual estimators are classical and credited below.
Concept credits
Permutation entropy — Bandt & Pompe. Hurst exponent / long-range dependence — H. E. Hurst; Mandelbrot. Hedge / multiplicative-weights online learning — Freund & Schapire; Littlestone & Warmuth; Vovk. Efficiency/structure framing — Kaufman. Triple-barrier labelling and R-multiple expectancy — M. López de Prado. Wilson score interval — E. B. Wilson. Synthesis, governance design, and implementation are the author's own.
Important disclaimer
Research and education only. Not financial advice, not a signal service, not a guarantee of future results. No indicator has an inherent edge. The calibration panel is a descriptive summary of past behaviour on the current chart — not a backtest and not a forward prediction. Always validate independently, apply realistic costs and slippage, and manage risk. You are solely responsible for your trading decisions. Indikator
Liquidity Profile Order Blocks [BOSWaves]Liquidity Profile Order Blocks - Impulse-Validated Order Block Detection with Embedded Net Delta Volume Profiles
Overview
Liquidity Profile Order Blocks is a pivot-anchored order block detection system that constructs supply and demand zones from impulse-validated swing events and embeds a live net delta volume profile inside each active block, where zone boundaries, profile distribution, and visual intensity are driven by measurable price displacement, volume-weighted directional flow at each price row, and real-time retest interaction rather than arbitrary candle pattern matching or static zone geometry.
Instead of identifying order blocks through isolated candle formations or fixed lookback patterns, each block requires a confirmed swing pivot followed by a displacement move exceeding a configurable ATR multiple, ensuring that only structurally significant events with genuine impulse evidence behind them generate zones. The embedded net delta profile then maps the buy and sell volume distribution across the price rows of each block using the formation candles, identifying the Point of Control and revealing whether the underlying flow within the block was predominantly buying or selling pressure at each specific level.
This creates an order block framework that combines structural detection criteria with internal participation intelligence. Each zone simultaneously shows where price pivoted with sufficient impulse to warrant attention, how volume was distributed across its price range during formation, whether that distribution was net buy or net sell dominant at each level, and how the balance is evolving as price retests the zone. When price enters an active block the visual system responds with intensified borders, brightened profile rows, and a glow effect that makes active interaction immediately identifiable.
Price is therefore evaluated not just against zones that meet structural criteria but against zones with a fully mapped internal participation profile that reveals the order flow composition of the institutional activity that created them.
Conceptual Framework
Liquidity Profile Order Blocks is founded on the principle that genuine order block zones carry two layers of evidence: a structural fingerprint in price behavior visible through pivot and impulse mechanics, and a participation fingerprint visible through the distribution of buying and selling volume across the zone's price range during its formation.
Traditional order block tools identify zones through candle pattern criteria alone and display them as uniform rectangles with no internal structure, treating all zones equally regardless of their internal flow composition. This framework adds the participation layer by building a per-row net delta profile inside each zone from the same bars that defined it, exposing how aggressively one side dominated at each price level and identifying the specific level within the zone where the greatest total participation was concentrated.
Three core principles guide the design:
Order block detection should require both a confirmed swing pivot and a measurable impulse displacement, ensuring structural and momentum criteria are satisfied simultaneously before a zone is committed.
Each zone should carry an embedded net delta profile derived from its formation bars, providing internal participation intelligence that distinguishes between zones with clean directional conviction and zones with contested or mixed flow composition.
Zone visualization should respond dynamically to retest interaction, intensifying when price is actively engaging with a block to communicate the structural significance of the current price location in real time.
This shifts order block analysis from pattern-matching zone marking into impulse-validated structural detection with embedded volume profile intelligence that reveals the institutional participation dynamics underlying each zone.
Theoretical Foundation
The indicator combines pivot high and low detection for swing identification, ATR-normalized impulse measurement for displacement validation, multi-candle zone boundary construction from formation bars, per-row volume allocation using price overlap fractions, net delta calculation across profile rows, POC identification by maximum row volume, retest interaction detection for profile updates and active state management, and a multi-layer gradient visualization system with glow intensity scaling.
Pivot detection uses configurable left and right bar requirements to identify confirmed swing highs and lows. Impulse validation measures the price displacement from pivot to the detection bar relative to ATR, filtering for only the moves with sufficient momentum evidence. Zone boundaries are constructed from the configured number of formation candles preceding the pivot, with ATR-based minimum and maximum height constraints preventing zones from being either too thin to be meaningful or too wide to be actionable. Volume allocation to each profile row is proportional to the overlap between each formation bar's range and the row boundary, ensuring volume is distributed to the price levels where it actually traded rather than assigned uniformly.
Four internal systems operate in tandem:
Impulse-Validated Detection Engine : Monitors confirmed pivot highs and lows and tests the displacement from pivot price to current close against the ATR multiple threshold, qualifying only structurally significant impulse events as order block origins.
Zone Construction and Constraint System : Builds zone boundaries from formation candles with ATR-based height clamping, manages maximum zone count by removing oldest blocks when the limit is reached, and optionally removes overlapping same-side zones to maintain a clean active zone set.
Net Delta Profile Engine : Allocates volume from formation bars to price rows via overlap-weighted fractions, tracks signed buy and sell volume per row to derive net delta ratios, identifies the POC as the maximum total volume row, and optionally updates the profile with additional volume on each confirmed retest bar.
Retest Interaction and Visual System : Monitors price entry into each zone, tracks touch count and armed state, detects mid-level confirmation for active signal generation, scales visual intensity through glow, border weight, and profile row brightness based on interaction state, and invalidates zones on configurable close or wick breach conditions.
This design ensures each zone carries both structural and participatory credentials while the visual system communicates interaction state dynamically throughout the zone's active lifecycle.
How It Works
Liquidity Profile Order Blocks evaluates price through a sequence of structure-aware and participation-tracking processes:
Pivot Detection : Swing highs and lows are confirmed when the configured number of bars to the left and right validate the pivot, identifying structurally significant turning points for impulse testing.
Impulse Validation : On each confirmed pivot, the price displacement from the pivot level to the current close is measured in ATR multiples. Displacement exceeding the configured threshold qualifies the event as an order block origin.
Zone Boundary Construction : The formation candle range spanning the configured number of bars before the pivot is used to derive zone top and bottom, with ATR-based minimum and maximum height constraints applied to ensure zone dimensions remain structurally meaningful.
Overlap Removal : When enabled, a newly created zone checks for existing same-direction zones that overlap with its boundaries and removes the oldest overlapping zone, preserving the most recently formed level.
Formation Profile Build : Each formation bar's volume is allocated to profile rows in proportion to the overlap between the bar's high-low range and each row boundary. Bullish formation bars contribute to buy volume and bearish bars to sell volume, building the initial net delta distribution across the zone's price rows.
POC Identification : The row with the greatest total volume accumulation across all formation bars is identified as the Point of Control, receiving distinct highlighting and an optional midpoint line.
Active State Monitoring : On each subsequent bar, price is tested for entry into each zone. Entry triggers a touch count increment and arms the zone for signal detection. When price closes beyond the midline in the zone direction after touching, the zone enters active state with intensified visual treatment.
Retest Profile Update : When the retest profile update setting is enabled, each confirmed bar while price is inside a zone contributes additional volume to the net delta profile, keeping the participation distribution current as the auction continues.
Visual Refresh : On every bar all active zones are redrawn with current glow intensity, border weight, profile row colors, and info box content reflecting the latest touch count, net delta percentage, total volume, and active state.
Invalidation Testing : On each confirmed bar, close or wick price is tested against the zone boundary in the opposing direction. Breach triggers zone deletion with full cleanup of all associated visual objects.
Together, these elements form a continuously updating order block system where structural credentials, internal participation profiles, and real-time retest dynamics are maintained simultaneously across all active zones.
Interpretation
Liquidity Profile Order Blocks should be interpreted as an impulse-validated structural zone system with embedded participation intelligence and dynamic interaction tracking:
Bullish Order Block (Green) : Zone formed below a confirmed swing low followed by a sufficient upward impulse, identifying a price region where buying activity concentrated before a displacement move higher.
Bearish Order Block (Red) : Zone formed above a confirmed swing high followed by a sufficient downward impulse, identifying a price region where selling activity concentrated before a displacement move lower.
Zone Body : The shaded rectangle spanning the formation candle range with gradient fill reflecting zone direction. Gradient intensity increases toward the dominant edge of the zone where institutional activity was most concentrated.
Net Delta Profile Bars : Horizontal bars centered within the zone body extending left or right from the center line to reflect net buy or net sell dominance at each price row. Longer bars indicate more decisive directional dominance at that level.
Point of Control Row : The profile row with the greatest total volume receives a distinct highlighted background and optional horizontal line, marking the price level of maximum participation concentration within the zone.
Info Box : Panel extending to the right of each zone displaying zone direction, net delta percentage across all formation volume, and total formatted volume, providing a quick quantitative summary of the zone's participation profile.
Midline : Dashed horizontal line at the zone center provides the reference level for mid-zone confirmation logic and serves as a precision target for entries and invalidation management.
Active Retest Glow : When price enters a zone after prior interaction, borders intensify, the POC line brightens, profile rows saturate, and the seam line thickens, communicating active structural engagement with immediate visual clarity.
Trend Cloud : Optional EMA fill and lines provide macro trend regime context, coloring in the bullish or bearish direction to help assess whether order block retests are occurring with or against the broader directional trend.
Zone impulse strength, net delta profile composition, POC location, touch count, and active glow state collectively provide more structural intelligence than zone boundaries alone.
Signal Logic & Visual Cues
Liquidity Profile Order Blocks generates retest confirmation signals when specific interaction conditions within active zones are met:
Bullish Retest Confirmation : Generated when price enters a bullish order block, the zone is in armed state from a prior touch, and price closes above the zone midline after having been at or below it, suggesting buying pressure is reasserting within the demand zone.
Bearish Retest Confirmation : Generated when price enters a bearish order block, the zone is in armed state from a prior touch, and price closes below the zone midline after having been at or above it, suggesting selling pressure is reasserting within the supply zone.
Both signal types require prior zone interaction to arm the zone before confirmation can trigger, filtering out first-touch reactions and focusing on the mid-level confirmation that indicates directional intent within the block.
Alert generation covers bullish and bearish retest confirmations for systematic zone-based monitoring workflows.
Strategy Integration
Liquidity Profile Order Blocks fits within institutional order flow and structural zone-based trading approaches:
POC-Precise Entries : Use the POC row within each zone as the highest-precision entry reference rather than the full zone boundary, placing entries at the level of maximum prior participation where the institutional activity was most concentrated.
Net Delta Zone Selection : Prioritize bullish zones showing net buy dominance in the profile and bearish zones showing net sell dominance, as aligned delta composition confirms that the formation volume was directionally consistent with the expected zone function.
Mid-Level Confirmation Entries : Use the midline confirmation signal as an entry trigger rather than entering on initial zone touch, waiting for price to demonstrate directional intent by closing beyond the zone center in the expected direction.
Touch Count Conviction Weighting : Assign higher confidence to zones with lower touch counts. Fresh zones with zero prior retests carry the most unmitigated institutional order potential. Zones with multiple touches have progressively absorbed more of the original order flow.
Retest Profile Monitoring : Monitor the net delta profile as it updates during retests with the Update Net Profile on Retest setting enabled. Profile composition shifting against the zone direction during a retest suggests absorption rather than continuation, warranting reduced confidence in zone integrity.
Invalidation Mode Selection : Use Close invalidation for stricter zone management that requires a full bar close beyond the boundary. Use Wick invalidation for earlier removal when any price excursion beyond the zone boundary is sufficient to consider the level structurally violated.
Technical Implementation Details
Detection Engine : Pivot high and low confirmation with ATR-normalized displacement measurement for impulse validation
Zone Construction : Multi-candle formation boundary derivation with ATR min and max height clamping and optional overlap removal
Profile System : Per-row volume allocation via high-low overlap fractions with signed net delta accumulation and maximum volume POC identification
Interaction Logic : Touch count tracking, armed state management, mid-level confirmation detection, and optional retest profile accumulation
Visual System : Multi-layer gradient zone fill, glow-scaled borders and lines, net delta profile bars, POC row and line highlighting, and info box with live metrics
Invalidation : Configurable close or wick breach detection with full object cleanup on zone removal
Trend Context : Dual EMA regime cloud with configurable fast and slow lengths for directional bias overlay
Performance Profile : Optimized with configurable maximum block count and array-based object management supporting real-time execution across all timeframes
Optimal Application Parameters
Timeframe Guidance:
1 - 5 min : Intraday order block mapping for scalping with shorter pivot length and tighter impulse threshold for responsive zone formation on smaller structural moves
15 - 60 min : Session-level institutional zone identification with balanced pivot and impulse settings producing zones aligned with meaningful intraday structural events
4H - Daily : Swing-level demand and supply zone mapping with higher pivot requirements and wider impulse thresholds reflecting larger structural displacements
Suggested Baseline Configuration:
Pivot Length : 8
Impulse Size (ATR) : 1.10
Formation Candles : 4
Remove Overlapping Same-Side Blocks : Enabled
Minimum Zone Height (ATR) : 0.12
Maximum Zone Height (ATR) : 1.20
Maximum Blocks : 6
Invalidation : Close
Profile Granularity : 12
POC Highlight : Both
Update Net Profile On Retest : Enabled
Active Retest Glow : Enabled
Show Info Box : Enabled
Show MA Fill : Disabled
Show MA Lines : Disabled
These suggested parameters should be used as a baseline; their effectiveness depends on the instrument's volatility characteristics, typical impulse behavior, and preferred zone density, so fine-tuning is expected for optimal performance.
Parameter Calibration Notes
Use the following adjustments to refine behavior without altering the core logic:
Too many zones forming : Increase Impulse Size to demand a stronger displacement move after each pivot, or increase Pivot Length to require more structurally significant swing confirmation before an order block qualifies.
Zones not forming frequently enough : Decrease Impulse Size toward 0.5 for more inclusive displacement qualification, or decrease Pivot Length toward 3 for faster pivot confirmation on shorter swing structures.
Zone boundaries too wide : Decrease Maximum Zone Height ATR multiplier to compress oversized zones, or decrease Formation Candles to limit the boundary range to fewer formation bars.
Zone boundaries too narrow : Increase Minimum Zone Height ATR multiplier to expand zones that are structurally too thin to provide meaningful interaction space.
Profile too granular or too coarse : Adjust Profile Granularity to increase or decrease the number of price rows, calibrating profile resolution to the zone height and the instrument's typical price movement within order block regions.
Zones invalidating too quickly : Switch Invalidation to Close mode to require a full bar close beyond the boundary rather than a wick excursion, reducing premature zone removal on temporary price spikes.
Too many zones overlapping : Enable Remove Overlapping Same-Side Blocks to automatically clean older zones when new ones form at the same area, or reduce Maximum Blocks to limit total active zone count.
Adjustments should be incremental and evaluated across multiple session types rather than isolated market conditions.
Performance Characteristics
High Effectiveness:
Trending markets with clear impulse moves following swing pivots where order block zones consistently align with subsequent pullback reaction levels
Liquid instruments with consistent volume where the net delta profile produces meaningful row-level participation distributions that accurately reflect institutional flow composition
Institutional zone-based trading approaches where POC precision entries and net delta filtering provide higher-quality trade framing than conventional order block boundary entries
Multi-timeframe workflows where higher-timeframe order block zones provide directional structural context for lower-timeframe entry timing
Reduced Effectiveness:
Choppy, range-bound markets where frequent small swing pivots generate overlapping zones without the sustained impulse displacement required for meaningful structural significance
Low-liquidity instruments where thin volume produces sparse net delta profiles with insufficient row-level differentiation to distinguish POC and flow composition reliably
News-driven or gap-heavy markets where impulse moves occur on discontinuous price action that distorts zone boundary derivation relative to actual institutional entry levels
Instruments with irregular volume distribution where the net delta profile loses compositional accuracy due to inconsistent participation patterns across formation bars
Extreme volatility environments where ATR-based zone constraints produce inconsistent zone sizes that do not reflect the structural significance of the underlying pivot events
Integration Guidelines
Confluence : Combine with BOSWaves momentum tools, volume analysis, or structural break indicators to validate order block retests with broader analytical context before acting on mid-level confirmation signals
Profile Composition Awareness : Treat net delta profile composition as a zone quality indicator. Zones with clean directional dominance across most rows carry higher conviction than zones with mixed or opposing flow across their price range.
POC Respect : Use the POC row as the precision reference for entry placement and invalidation management. The maximum participation level within the zone represents the most meaningful price within the block from an institutional activity perspective.
Touch Count Discipline : Reduce position sizing or confidence on zones that have been retested multiple times. Each touch consumes a portion of the original order flow that created the zone, reducing the probability of a sustained reaction on subsequent tests.
Active Glow Response : Treat the active glow state as an immediate visual alert that price is engaging with a structurally significant level. Use this as a cue to increase monitoring frequency and prepare for confirmation or invalidation rather than acting immediately on zone entry alone.
Disclaimer
Liquidity Profile Order Blocks is a professional-grade order block detection and volume profile analysis tool. It uses impulse-validated pivot detection with per-row net delta profiling but does not access true exchange-level order book data. All volume distribution and flow measurements are derived from OHLCV data and represent best-approximation estimates of institutional participation rather than actual order book information. Results depend on instrument liquidity, volume reliability, parameter selection, and disciplined execution. BOSWaves recommends deploying this indicator within a broader analytical framework that incorporates momentum context, trend structure, and comprehensive risk management. Indikator
OrderFlow Absorption Matrix | ProjectSyndicateOrderFlow Absorption Matrix reconstructs the order flow hiding inside every candle and maps it onto price as a living liquidity profile — then power-ranks the levels where aggressive volume was absorbed and price is most likely to react. It drills into each bar with a lower-timeframe scan to measure true buy/sell delta and, crucially, absorption — the volume that pushed into a wick and got soaked up by passive limit orders instead of moving price. That footprint is binned across the range into a Liquidity Profile, a Delta column and an Absorption column, anchored by the Value Area (POC / VAH / VAL), and distilled into 0–10 strength-ranked support/resistance zones. The whole tool runs on one idea from order-flow theory: price doesn't reverse where volume is heavy — it reverses where aggression is absorbed. The Absorption engine finds those hidden walls, scores them, and shows you the conviction behind each one at a glance.
🌊 LTF Delta & Absorption Engine — the core of the tool. A lower-timeframe scan breaks each chart bar into its intrabar prints and measures two things conventional volume cannot: net Delta (buying minus selling pressure) and Absorption (aggressive volume that drove into the upper or lower wick and was rejected — sellers absorbing buyers at highs, buyers absorbing sellers at lows). Granularity is adjustable, with optional seconds data for fine delta on low timeframes, and a clean fallback to candle direction when intrabar data is unavailable.
🟪 The Absorption Column — the namesake read. Beside the profile, a dedicated column ranks every price bin by how much aggressive flow was absorbed there. Tall absorption bars mark the hidden walls — iceberg-style passive defense where the market repeatedly refused to move despite aggression hitting it. These are the levels that hold, and the Absorption Side read tells you whether the heaviest absorption sits below price (defended support) or above it (defended resistance).
📊 The Liquidity Profile — a binned volume profile built over a rolling lookback, split four ways into strong / weak buying and strong / weak selling. Bars that traded on above-percentile volume render brighter as "strong," so you see not just where volume built, but where conviction did. The profile projects to the right of price so your candles stay clean.
🎯 Delta Heatmap Column — net buy/sell delta per price bin, shaded by intensity and labelled with the signed value, so you can read exactly which shelves were accumulated and which were distributed — even when total volume looks balanced.
🧲 Value Area — POC / VAH / VAL — the auction skeleton. The Point of Control (highest-volume price), the Value-Area High and Low are computed by true value-area expansion from the POC and drawn as clean reference lines. POC is the magnet; the VA edges frame fair value, and "Price vs POC" (in ATR) tells you how stretched the auction is.
🏆 0–10 Strength-Ranked Liquidity Zones — the power-ranking. The strongest levels are peak-detected from the profile and each earns a live 0–10 grade from five principled factors, each with a fixed directional sign: Volume (how much traded at the level), Absorption (how much aggression was soaked up there — the differentiator), Touches (how many times price tested it across the window), Rejection Wicks (how violently it was defended), and Recency (recent tests outrank stale ones). All five weights are adjustable. Zones are filtered by a minimum score and capped to the strongest N, so the chart only carries levels that earned their place — never overload.
🏷️ In-Zone Strength Labels & Stats — each zone carries its grade inside the band: stars, the X.X/10 score, a tier word (FORMING → WEAK → MODERATE → STRONG → ELITE) and a SUPPORT / RESIST side marker — plus the detailed stats that built it: Volume, Absorption, Touch count and Rejection count (V / A / T / R). Quality and reasoning read instantly, right on the level.
🎨 Strength-Shaded Fill — stronger zones render more opaque while weak ones stay faint, so the chart shows which levels carry weight before you read a number. Support zones shade with the bullish tone, resistance with the bearish tone, and the brightest band is your highest-conviction wall.
🧮 Flow Pressure Verdict — a composite read that fuses profile imbalance, cumulative-delta bias, absorption side and the most recent significant print into a single directional score, resolved to ACCUMULATION, DISTRIBUTION or BALANCED. One line tells you whether the order flow is quietly loading up or unloading beneath the price action.
🔭 MTF Flow Bias — a non-repainting flow read on three higher timeframes (default 15 / 60 / 240), each tagged BULL / BEAR / FLAT, so you can align your level with the larger order-flow tide before you act.
🖥️ Command Dashboard — a clean, terminal-style panel grouping everything that matters: Order Flow (last print, bar delta, bar volume, CVD bias), Liquidity Profile (POC / VAH / VAL, buy/sell share, net imbalance, price vs POC), Key Zones (top zone price, top-zone strength, absorption peak and side), MTF Flow and the Flow Pressure verdict — quality and context at a glance, no separate windows.
🎨 Five High-Contrast Themes — Plasma (aqua / rose / gold, default), Cyber, Ice & Fire, Phosphor and Mono — all tuned to read cleanly on a black background, with an optional flow-tint on the candles themselves.
🧹 Score Filter & Toggles — hide every zone below a score threshold, cap the number of zones, switch the profile, delta column, absorption column, value area, zones, dashboard and candle tint on or off — so the chart only shows the layers you trade.
🔒 Honest & Non-Repainting Core — historical bars are fixed: the profile, zones and scores are built from completed-bar history, and the higher-timeframe flow read uses a strict non-repainting request (prior confirmed bar only). The live bar and the rolling profile naturally refresh as each new bar closes — exactly as order flow should — but nothing redraws the past, and the score never hides a level to flatter the picture. The strength grade is a descriptive order-flow framework for ranking attention, not a backtested signal.
🔔 Native Alerts — a Whale Print alert for the largest order-flow clusters, a Medium-or-greater Print alert, an Any-Print alert, plus directional Buy-Print and Sell-Print alerts — so you catch significant flow the moment it hits the tape.
🔧 Fully Customizable — detection method and side-classification, percentile sensitivity and consensus windows, LTF granularity and seconds toggle, profile lookback / resolution / width / offset, strong-volume filter, value-area percent, the five zone-score weights, minimum strength, max zones, touch normalization, label content / size, MTF timeframes, theme, transparency and dashboard position / size — all adjustable.
🎯 Why this is different — most profile and S/R tools show you where volume is, then leave you guessing which shelf actually matters. OrderFlow Absorption Matrix answers it: it measures the absorption hidden in the wicks, ranks each level 0–10 on real order-flow evidence, and puts the score, the side and the supporting stats right inside the zone. You read where the wall is, why it's strong, and which way the flow is leaning — at a glance.
🚀 Apply to Gold (XAUUSD), Silver, Forex, Crypto, Indices and Futures on any intraday timeframe (volume-bearing symbols).
🎯 How To Trade It — Two Approaches
Everything hinges on one question the tool answers: is this level absorbing aggression (it holds) or is flow breaking through it (it gives)? High-strength zones with heavy absorption favor reaction; weak or de-rated zones being hit with strong same-side delta favor continuation.
◾ 1) Fade into an absorbed zone → rotate to value (reaction) — use on STRONG / ELITE zones (≥7) with heavy absorption
This is the indicator's core thesis. When price drives into a high-strength zone whose grade is built on Absorption and Rejection — most reliable when the Absorption Side confirms the direction (heavy absorption below = defended support, above = defended resistance) and Flow Pressure isn't screaming with the move.
▪️ Wait for price to tag the rated zone and print rejection — a wick or reversal back inside the band, ideally with the Delta column showing the aggressor being absorbed rather than breaking through.
▪️ Entry: on the rejection back inside the zone, facing the Value Area.
▪️ Stop: just beyond the zone / the next stronger level out. If price closes decisively through and holds, the absorption thesis failed — stand aside or flip to Approach 2.
▪️ Targets: step toward fair value — the POC as the primary magnet, then the opposite Value-Area edge (VAH/VAL) if momentum carries.
⚖️ The cleanest version: price spikes into an ELITE resistance zone with a tall absorption bar, the Delta column shows buyers getting soaked up, price fails to hold and rotates back down through VAH into the POC. That absorption-to-value reversion is the move this tool is built to frame. Use the Whale-Print and directional Buy/Sell-Print alerts to catch the stretch as it prints.
◾ 2) Break & retest a failing zone → trade with the flow (continuation) — use when zones are weak / de-rated or flow is one-sided
When a level is graded low, when the Delta column shows persistent same-side pressure into it, and the Flow Pressure verdict and MTF Flow all lean the same way, a clean break is the order flow expanding, not exhausting.
▪️ Wait for a decisive close beyond the zone on strong same-side delta (not a single wick), with the band failing to absorb.
▪️ Entry: in the direction of the break, on the close beyond the level or on a retest of the broken zone (a broken resistance often flips to support, and vice-versa).
▪️ Stop: back inside the broken zone, against the move.
▪️ Targets: the next ranked zone, the opposite Value-Area edge, or a measured move — trailing as flow extends.
Rule of thumb: ⭐ STRONG / ELITE absorbed zone + confirming Absorption Side → expect a reaction, fade it back toward the POC. ⭐ Weak / de-rated zone + one-sided delta and aligned MTF flow → expect follow-through, trade the break and retest.
⚠️ IMPORTANT NOTICE: OrderFlow Absorption Matrix reconstructs estimated order flow from lower-timeframe data and ranks where price is most likely to react. Lower-timeframe delta and absorption are an approximation of true tape, not exchange order-book data, and the 0–10 score is a descriptive order-flow framework — NOT a backtested signal and NOT a standalone trade trigger. Always combine it with your own strategy, price-action analysis and risk management to confirm setups. The indicator requires a volume-bearing symbol. Past behavior does not guarantee future results. Indikator
Hidden Liquidity Profile [Alpha Extract]A sophisticated liquidity-mapping and support/resistance profiling framework that analyzes historical candle structure, volume, wick behaviour, and price distribution to identify hidden supply and demand zones across the chart. Hidden Liquidity Profile is designed to reveal where meaningful liquidity may be concentrated by separating sell-side and buy-side pressure into price bins, then projecting those zones forward as heat boxes, horizon lines, key price tags, and a real-time support/resistance dashboard.
Rather than relying on simple pivot highs and lows, the system evaluates how volume interacted with candle ranges, upper wicks, lower wicks, candle bodies, and recency weighting. This creates a dynamic liquidity profile that highlights where price may encounter resistance, support, absorption, or reaction zones.
🔶 Hidden Liquidity Profiling Engine
Builds separate supply and demand profiles across the selected lookback range. The system divides price into configurable bins, then distributes liquidity strength into those bins based on volume, candle range, wick size, body size, and age decay.
energy = vol * rng * decay
sellStrength = energy * (upWick * wickWeight + body * bodyWeight * sellBias)
buyStrength = energy * (dnWick * wickWeight + body * bodyWeight * buyBias)
This allows the indicator to estimate where sell liquidity and buy liquidity are most likely concentrated rather than only marking obvious visible highs and lows.
🔶 Supply & Demand Separation
The profile separates upper-wick and lower-wick pressure into two distinct liquidity maps.
Upper wick activity contributes to the supply profile, helping identify areas where sellers may have previously absorbed price movement. Lower wick activity contributes to the demand profile, helping identify zones where buyers may have previously defended price.
This separation gives traders a clearer view of whether nearby levels are more likely to behave as resistance, support, or balanced liquidity.
🔶 Age-Weighted Liquidity Decay
Applies a recency decay model so newer candles have stronger influence than older candles. This keeps the profile focused on liquidity that is more relevant to the current market environment while still preserving broader historical context.
The Age Decay Power setting controls how aggressively older liquidity fades. Higher values emphasize recent price action more strongly, while lower values retain more historical structure.
🔶 Price Bin Distribution System
Divides the analyzed price range into configurable price bins and assigns liquidity strength into each level. The Price Bins setting controls the resolution of the profile.
More bins create a finer, more detailed liquidity map. Fewer bins create a smoother, broader view of major supply and demand areas.
🔶 Distribution Radius Smoothing
Uses a configurable distribution radius to spread liquidity strength around nearby bins. This prevents the profile from becoming too fragmented and helps form smoother liquidity clusters.
This is especially useful on volatile assets where important liquidity zones often form across small ranges rather than at one exact tick.
🔶 Liquidity Heat Box Visualization
Displays supply and demand as horizontal heat boxes projected to the right side of the chart.
Supply liquidity is shown on the sell side using the selected sell color, while demand liquidity is shown on the buy side using the selected buy color. Wider and brighter boxes represent stronger normalized liquidity at that price level.
This creates a visual depth-style map that helps traders quickly identify where meaningful liquidity may be stacked above and below current price.
🔶 Forward Horizon Lines
Projects stronger liquidity levels forward using horizontal lines. These lines act as future reference zones where price may react, pause, reject, or accelerate through.
The Line Trigger setting controls how strong a liquidity level must be before it is projected. The Line Width Scale setting adjusts how visually dominant stronger levels appear.
🔶 Key Level Detection Framework
Identifies the strongest supply and demand levels from the profile and labels them directly on the chart.
The system can prioritize local peaks, helping avoid overcrowding and ensuring that selected levels represent distinct liquidity clusters rather than multiple nearby bins from the same zone.
This scoring model favors levels with strong dominant liquidity while still accounting for total combined activity.
🔶 Supply HVN & Demand HVN Labels
Marks high-volume liquidity nodes as Supply HVN or Demand HVN depending on which side of the profile dominates at that price.
Each label includes the level type, normalized strength percentage, and exact price. This allows traders to quickly identify the most important liquidity levels without manually reading the full heat map.
🔶 Nearest Support & Resistance Logic
Calculates the most relevant resistance above price and support below price using both liquidity strength and distance from current price.
Levels closer to current price receive more practical importance, while still needing enough liquidity strength to qualify. This helps the dashboard focus on actionable nearby zones instead of simply displaying the strongest level anywhere in the lookback range.
🔶 Aura Point Of Control
Identifies the strongest combined liquidity level across the profile. This Aura POC represents the price zone with the highest combined supply and demand activity.
The POC can act as a major reference point for balance, rotation, acceptance, rejection, or future retests.
🔶 Liquidity Pressure Balance
Compares total normalized demand against total normalized supply to estimate the broader pressure bias across the analyzed range.
When demand is meaningfully stronger, the dashboard shows a demand bias. When supply dominates, it shows a supply bias. When the two sides are close, the market is classified as balanced.
🔶 Real-Time S/R Dashboard
Includes a compact dashboard showing the most important liquidity information directly on the chart:
• Nearest resistance level
• Nearest support level
• Aura POC
• Supply, demand, or balanced pressure
• Active liquidity level count
• Current ticker reference
This gives traders a quick summary of where the strongest nearby reaction zones are and whether the broader liquidity profile is tilted toward supply or demand.
🔶 Customizable Visual Controls
Provides flexible display controls for heat boxes, horizon lines, key level tags, dotted key level lines, and the dashboard.
Traders can adjust the number of analyzed bars, price bin resolution, liquidity smoothing, projection distance, box width, line width, and trigger thresholds to match different assets and timeframes.
🔶 Clean Overlay Design
The full liquidity map is displayed directly on price without requiring a separate oscillator pane. Heat boxes appear to the right of the chart, while key levels and labels extend across the active lookback area.
This keeps the chart readable while still providing a detailed view of hidden supply and demand structure.
🔶 Why Choose Hidden Liquidity Profile ?
Hidden Liquidity Profile provides a more advanced way to identify potential support, resistance, and liquidity reaction zones by analyzing volume-weighted candle structure across the full price range. Instead of marking only visible swing highs and lows, it evaluates where supply and demand pressure may be concentrated based on wick behaviour, candle body participation, volume energy, and recency-weighted price distribution.
The heat boxes reveal liquidity density, the horizon lines project important levels forward, the HVN labels highlight the strongest zones, and the dashboard summarizes nearest support, resistance, POC, and pressure bias in real time.
Perfect for liquidity traders, support/resistance traders, intraday traders, swing traders, and market structure analysts who want a cleaner way to visualize hidden supply and demand zones directly on the chart. Indikator
Multi Timeframe Order-Flow CockpitMulti-Timeframe Order-Flow Cockpit
A single overlay that turns raw volume into a multi-timeframe order-flow read. It draws a compact row of higher-timeframe (HTF) candles beside price — each split into buy vs sell volume — and condenses several timeframes' order flow into one plain-language verdict. Unusually, it ships with a built-in calibration layer that forward-tests its own verdict and tells you, in plain words, whether that verdict actually beats a base rate — instead of asserting an edge it cannot show.
WHAT IT DOES
For each timeframe you enable, the script reconstructs the buy/sell volume that built every bar, scores how one-sided that flow is, reads market structure, and fuses everything into a single bias with a stated conviction. It then projects key price levels and marks where current price sits inside each timeframe's range — so you can see, at one glance, what order flow is doing across the whole timeframe stack.
WHY THESE COMPONENTS ARE COMBINED
This is not a pile of unrelated overlays. It is a pipeline where each stage feeds the next, and a final stage audits the whole:
Higher-timeframe candles are the canvas — see several timeframes' auctions at once without flipping charts.
Intrabar delta classifies sub-bar volume into buy vs sell (close-vs-open, or range-weighted). Where your plan and symbol allow, the chart-timeframe strip uses native footprint (real aggressor bid/ask volume), tagged REAL; otherwise it reconstructs the delta and is tagged EST — so data fidelity is never hidden.
Order-flow toxicity (VPIN-family) measures how aggressive/one-sided each timeframe's flow is. It is a conviction input, not a direction.
Market structure (swing breaks, BOS/CHoCH) supplies directional context that can override delta when price structure genuinely shifts.
Probabilistic synthesis fuses the above in log-odds space, averaging correlated inputs so that redundant agreement cannot inflate confidence, plus an optional exogenous volatility-index vote (rising volatility pressures the asset).
Forward calibration resolves every committed verdict N bars later against an ATR-sized move and reports Hit% versus an unconditional Base%, gated by a Wilson score interval so a result is only flagged (star) when it is statistically distinguishable from chance — split by trending versus ranging regime.
The components belong together because the deliverable is the synthesis and its honest scoring, which no single overlay can provide: toxicity needs the delta, structure contextualizes the delta, the verdict needs all of them, and the calibration is meaningless without a verdict to test.
HOW TO USE IT
Read the Compact table (default). Bias = which way flow leans; Conviction = how strongly; Flow = calm vs one-sided; Setup = exhaustion flags; Edge = whether the verdict has measured, significant edge; Use = the bottom line — "Context only" until edge is proven, "Tradeable — still verify" only when the calibration confirms it.
Switch the table to Pro for per-timeframe metrics (delta %, toxicity, structure, calibrated bias) plus the combined verdict and calibration rows. Turn on the Key Info table while learning — it is a plain-language legend.
On-chart aids: each panel tags its true High/Low and shows a position triangle at its edge — green when price is above that timeframe's range, red when below, yellow when inside, with brightness scaling to how far price has stretched. Key levels (POC, value-area high/low, recent swing high/low) are projected at true price as reference zones.
Any market: set your symbol, price source and intrabar resolution in Data Source, and your market's volatility index in Volatility Vote. Defaults are set for NSE NIFTY — change them for other assets.
Alerts are attention cues (verdict shift, toxicity spike, divergence, structure shift) — they tell you where to look, never what to do. Create one alert with the condition "Any alert() function call."
WHAT IS ORIGINAL HERE
Most order-flow and "smart-money" tools assert an edge by drawing confident signals. This one is built around the opposite discipline: a transparent calibration layer that measures and reports its own edge against a base rate, refuses to certify a signal that has not earned statistical significance, and reports it separately by market regime. The multi-timeframe order-flow synthesis with decorrelated log-odds fusion, and the REAL/EST fidelity tagging of delta, are also original to this implementation. The honesty layer is the headline feature — it is designed to tell you when there is no proven edge.
CONCEPT CREDITS (methods, not code)
Bulk Volume Classification / VPIN — Easley, Lopez de Prado and O'Hara. Market/Volume Profile (value area, POC) — J. Peter Steidlmayer. Wilson score interval — E. B. Wilson (1927). Efficiency-ratio regime — Perry Kaufman. Market-structure concepts — classical price action. All original code, architecture, fusion and calibration by the author.
DISCLAIMER
This is an awareness/context tool — not a signal generator and not financial advice. No indicator predicts the future. Past behavior and any displayed statistics do not guarantee future results; the calibration is explicitly designed to report when the tool has no measurable edge — heed it. Trade your own plan and manage your risk. Indikator
Indikator
Volatility, Flow & Liquidity EngineVolatility, Flow & Liquidity Engine (VFL)
Why these parts are ONE tool, not a mashup of separate indicators
The three layers aren't independent studies stacked for show — they are sequential stages of a single trade decision (is a move coming, which way, and can I execute it) and they share one computational core. The same path-dependent volatility forecast is computed once and used by all three: it anchors Layer 1's expected move and implied-vs-realized dislocation, and it de-biases Layer 3's high-low spread estimators and prices its slippage and sizing. A signal is only actionable when Layer 1 says "loaded," Layer 2's order flow confirms the side, and Layer 3 says the spread and impact let you execute at size. Remove any layer and the decision is incomplete — timing without direction is a coin flip; direction without an execution read ignores slippage that can exceed the edge. That dependency, and the shared vol core, is why this lives in one script rather than three.
The three layers
Pressure & regime — when a move is coming. Compression, implied-vs-expected-vol dislocation, basis tension, convexity and trend inefficiency combine into a "pressure" reading. A high-percentile load plus a real range release fires a signal, typed GAMMA BLAST / SQUEEZE / EXPANSION, alongside a variance-ratio regime read and a path-dependent realized-vol forecast with a rolling fit/trust gauge.
Order flow — which way. Reconstructed intrabar buy/sell pressure (bulk-volume by default, with candle-geometry and intrabar tick-rule options) standardized to a z-score plus session CVD. Used only to confirm or veto a release's direction — the one orthogonal read price geometry alone can't give.
Liquidity & execution — can I trade it, and at what cost. Low-frequency effective-spread estimators (EDGE primary, with high-low covariance and high-low range cross-checks), an illiquidity ratio and impact-slope, and a volume-at-price liquidity map (POC, value area, walls, voids, anchored VWAP with σ bands, nearest dense liquidity). These become a liquidity score, slippage estimate, and order-type and size guidance. A structure sub-layer (prior-day value area + untested "naked" POCs) builds a per-bar support/resistance ladder that location-gates the final signal: a long is withheld if it would fire into a resistance shelf, a short if into support.
How to use it
Wait for the consolidated decision table to line up — pressure loaded, order flow confirming the side, liquidity executable, and the trade well-located against the S/R ladder. Read the size and order-type guidance before entering, and treat STRESSED liquidity or Extreme vol as stand-aside flags. The on-chart glow lines map the structure (prior-day value, naked-POC magnets, liquidity support/resistance, nearest shelves, fair-value VWAP); the legend-key panel decodes every line and marker.
Universal — works on any asset, any market
Price source, volume source (with a borrow-volume option for cash indices/FX), companion symbol and volatility index are all configurable inputs. Defaults are tuned for NSE NIFTY index futures (intraday, weekly Tuesday expiry, 09:15–15:30) — change the companion/vol-index symbols, expiry day and session for other instruments. The volatility index and companion symbol are optional; without them the engine runs price-only and re-weights automatically.
Non-repaint
Higher-timeframe confluence reads the last closed HTF bar by default, and every higher-timeframe request uses no-lookahead — confirmed signals don't move after the bar closes. The current bar forms live and settles on close, like any indicator.
Honesty / limitations
Every block is a low-frequency estimator of a quantity normally measured from quote/tick/book data — it approximates, it does not measure. Order flow is reconstructed (≈tick-rule accuracy), not true bid/ask; dealer-flow effects are inferred from price/vol/basis, not read from an option chain. Volume modules need a real volume feed and auto-disable without one. Follow-through statistics are computed on loaded chart history (in-sample), not a forward backtest.
This is a study/education tool, not financial advice. Estimates only; past behaviour does not guarantee future results. Indikator
